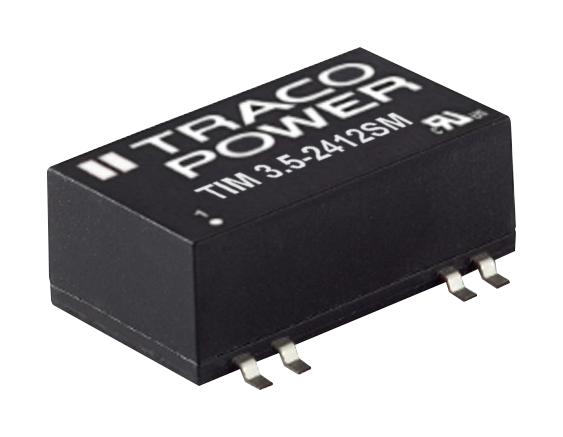

TRACO POWER TIM351211SM Medical DC/DC Converter
The TIM 3.5SM series is a range of compact 3.5 Watt DC/DC converters designed for medical applications and industrial control systems. These converters feature reinforced isolation of 5000 VACrms, low leakage current under 2 pA, and operate across a wide temperature range from -40°C to 90°C. Certified according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and suitable for operation at altitudes up to 5000 m, they ensure safety and reliability in medical device insulation, with EMC compliance, low noise, and a 5-year warranty.
TRACO POWER TIM351211SM Medical DC/DC Converter Specifications:
- Power Rating: 3.5 Watt
- Isolation Voltage: 5000 VAC (reinforced insulation)
- Working Voltage: 250 VAC, 2 x MOPP
- Input Voltage Range: 4.5 VDC to 36 VDC (varies by model)
- Output Voltage Range: 4.5 VDC to 36 VDC (varied models)
- Maximum Output Current: 700 mA (varies by model)
- Efficiency: Up to 83%
- Operating Temperature: -40°C to +90°C
- Temperature Coefficient: ≤0.02%/K
- Leakage Current: < 2 pA at 240 VAC
- Dimensions: Compact SMD package, 24.3 mm × 18.1 mm
- EMC Compliance: IEC 60601-1-2, EN55032 Class A
- Certifications: IEC/EN/ES 60601-1 3rd edition, FDA, CE
- Enclosure: Non-conductive black plastic, silicone potting (UL94 V-0)
Buy the Buy Traco Power TIM 3.5SM Part Number TIM351211SM Online
Purchase the Traco Power TIM 3.5SM series online to ensure reliable power conversion for medical equipment and industrial controls. These 3.5 Watt converters feature reinforced safety isolation of 5000 VACrms, low leakage current less than 2 pA, and a wide operating temperature from -40°C to 90°C. Certified for IEC 60601-1 standards, they offer high efficiency up to 83%, low noise EMI filtering, and a compact SMD design ideal for space-constrained applications. Built for safety, reliability, and long-term durability, buy now to protect your medical devices and control systems with trusted quality.
Get Traco Power TIM 3.5SM today—built for medical-grade insulation and dependable performance in compact designs.
Frequently Asked Questions
Where can I buy TRACO POWER TIM351211SM?
You can click on the BUY or RFQ button to purchase TIM351211SM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIM351211SM?
You can download the TIM351211SM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIM351211SM?
TRACO POWER
