TRACO POWER TMR42423WI DC/DC Converter
The TMR 4WI series by Traco Power provides highly efficient 4 Watt DC/DC converters with a compact SIP-8 package and 4:1 input voltage range. Designed for industrial applications, these converters feature an input isolation voltage of 1600 VDC, fully regulated outputs, and protection against short circuits and overloads. They operate efficiently up to 83% across a temperature range of -40°C to +70°C without derating, ensuring reliable performance. Remote On/Off control and compliance with IEC/EN/UL 62368-1 standards make this series ideal for demanding environments requiring durable, space-saving power solutions.
TRACO POWER TMR42423WI DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 12 VDC, 24 VDC, 48 VDC, 18-75 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Output Power: 4 Watts
- Output Voltage Options: 5 VDC, 12 VDC, 15 VDC, -12 VDC, -15 VDC, 9-36 VDC dual outputs
- Output Current: 800 mA at 5 V/12 V; 266 mA at 15 V; 166 mA at ±12 V/±15 V
- Efficiency: Up to 83%
- Isolation Voltage: 1600 VDC for 60 seconds
- Operating Temperature Range: -40°C to +70°C
- Temperature Derating: None up to 70°C, Power derating of 3.33%/K above 70°C
- Protection: Continuous short-circuit, overload foldback mode
- Ripple & Noise: 80 mVp-p at 20 MHz bandwidth
- Housing Material: Non-conductive plastic, V-0 rated
- Pin Material: Tinned copper
- Dimensions: SIP-8 package, approximately 22.0 mm x 8.0 mm x 10.0 mm
- Certifications: IEC 62368-1, UL 62368-1, EN 62368-1
- Remote Control: Enabled with low voltage control (<0.6 VDC)
- Insulation Resistance: 17,000 MΩ at 500 VDC
- Isolation Capacitance: 200 pF
- Compliance: RoHS, Reach

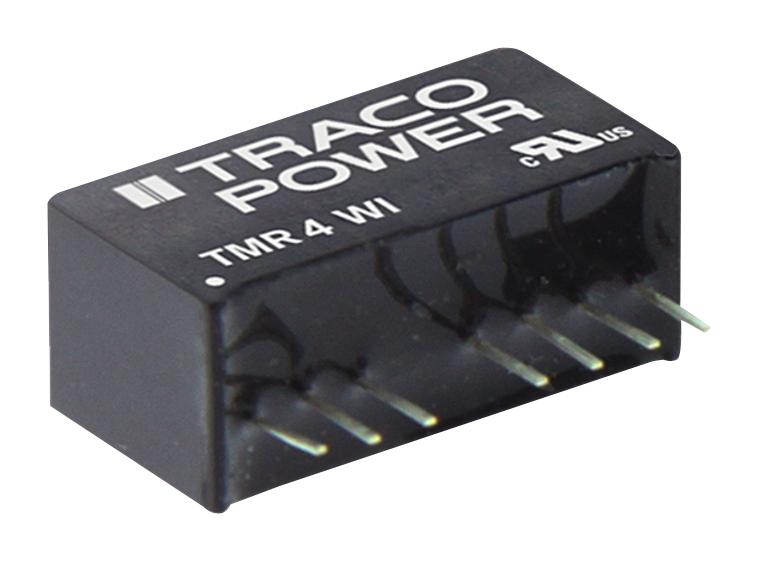

Buy the Buy Traco Power TMR 4WI Part Number TMR42423WI Online
Secure your industrial power solutions today by purchasing the Traco Power TMR 4WI series converter online. Featuring a compact SIP-8 design, 4:1 input voltage range, up to 83% efficiency, and operation from -40°C to +70°C without derating, this converter ensures reliable, space-efficient power regulation. Its 1600 VDC isolation, protection features, and compliance with IEC/UL standards make it ideal for demanding environments. Enjoy quick delivery and trusted quality by buying online now for your industrial, automation, or control applications.
Buy Traco Power TMR 42423WI now and experience unmatched reliability and high efficiency in your industrial power conversion needs.
Frequently Asked Questions
Where can I buy TRACO POWER TMR42423WI?
You can click on the BUY or RFQ button to purchase TMR42423WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR42423WI?
You can download the TMR42423WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR42423WI?
TRACO POWER
