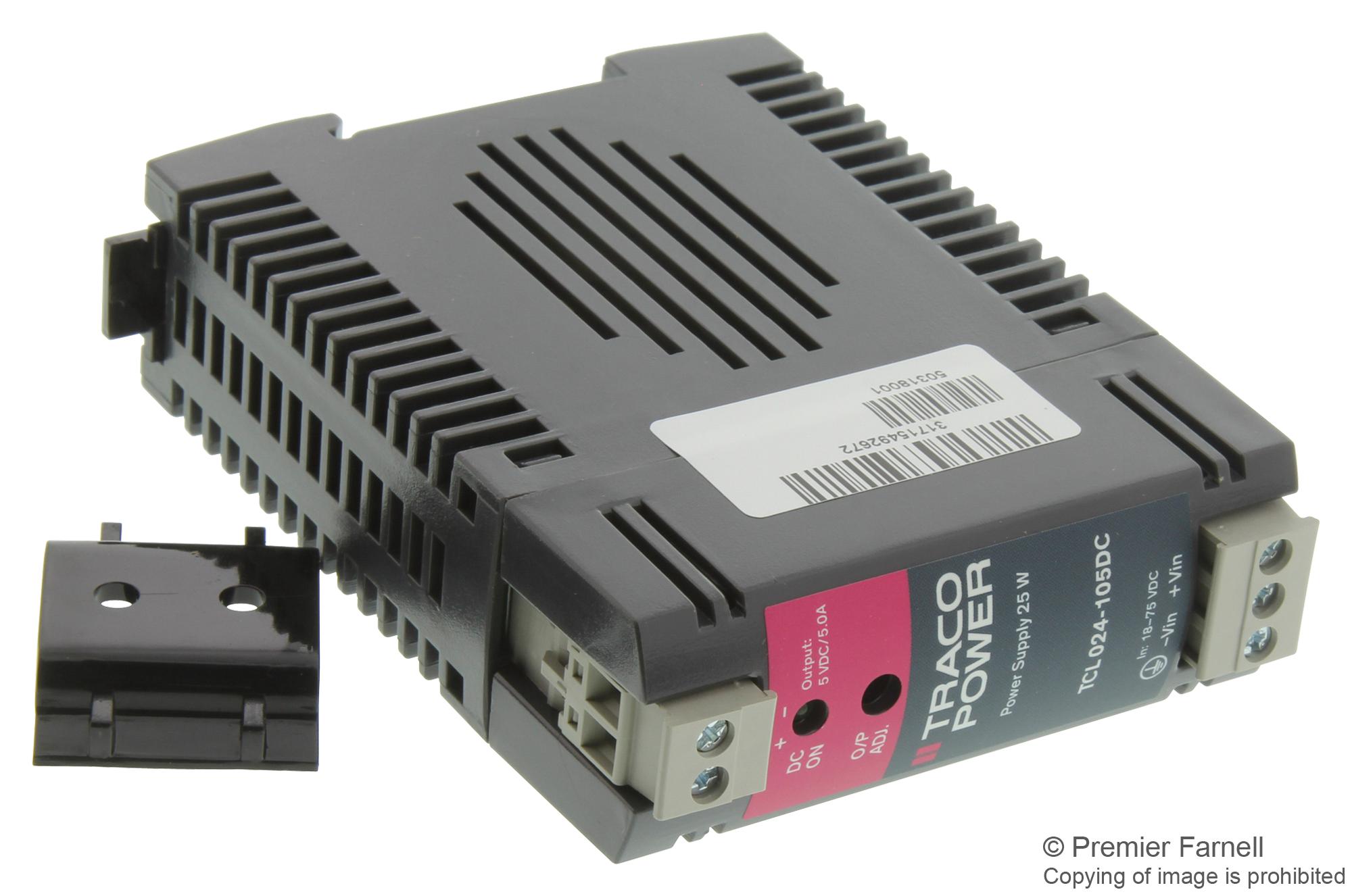

TRACO POWER TCL024105DC Industrial DC/DC Converter
The industrial DC to DC converter features a tightly regulated voltage output with an ultra-wide input voltage range of 5 VDC, 12 VDC, or 24 VDC models. Delivering up to 60W, it provides reliable power for sensitive loads in industrial automation, process control, and factory automation. The converter supports adjustable output voltage, overload and short-circuit protection, low ripple and noise, and input/output isolation of 1500VDC. Encased in a compact, IP20 rated plastic case, it offers snap-on DIN-rail and wall mounting options, operating efficiently from -25°C to +70°C with high safety standards and electromagnetic compatibility.
TRACO POWER TCL024105DC Industrial DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC, 12 VDC, 24 VDC models; 9.5-18 VDC or 18-75 VDC depending on model
- Output Voltage: 5.0 - 5.25 VDC (TCL 024), 12.0 - 15.0 VDC (TCL 060), 24.0 - 28.0 VDC (TCL 124)
- Output Power: up to 60W
- Maximum Output Current: 10A for 24V models, 5A for 12V, 5V models
- Efficiency: Typical 86%
- Ripple & Noise: <50 mV pk-pk (20 MHz bandwidth)
- Isolation Voltage: 1500 VDC (Input/Output)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -25°C to +85°C
- Protection: Overload, Short-circuit, Overvoltage, Reverse polarity
- Enclosure Material: Plastic UL 94V-0 rated
- Protection Class: IP20
- Mounting: DIN-rail, wall bracket included
- Certifications: UL 60950-1, UL 508, CSA, EN 60950-1, EN 60204, EN 50178, CE, RoHS compliant
- Switching Frequency: 55-180 kHz
- MTBF: >2.5 million hours at +25°C
Buy the TRACOPOWER TCL024105DC – Reliable Industrial DC/DC Converter for Industrial Applications
Upgrade your industrial power solutions with the reliable DC/DC converter that offers a wide input range, adjustable output, and high safety standards. Perfect for automation and process control, it features UL 60950-1 and UL 508 certifications, low ripple and noise, and a compact IP20 plastic case with easy DIN-rail or wall mounting. Ensure uninterrupted operation of sensitive loads in harsh environments. Purchase online today for fast delivery and leverage the high efficiency, versatility, and robust protections for your critical industrial applications.
Buy TRACOPOWER TCL024105DC now and experience unmatched reliability and high efficiency for your industrial automation needs.
Frequently Asked Questions
Where can I buy TRACO POWER TCL024105DC?
You can click on the BUY or RFQ button to purchase TCL024105DC from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TCL024105DC?
You can download the TCL024105DC datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TCL024105DC?
TRACO POWER
