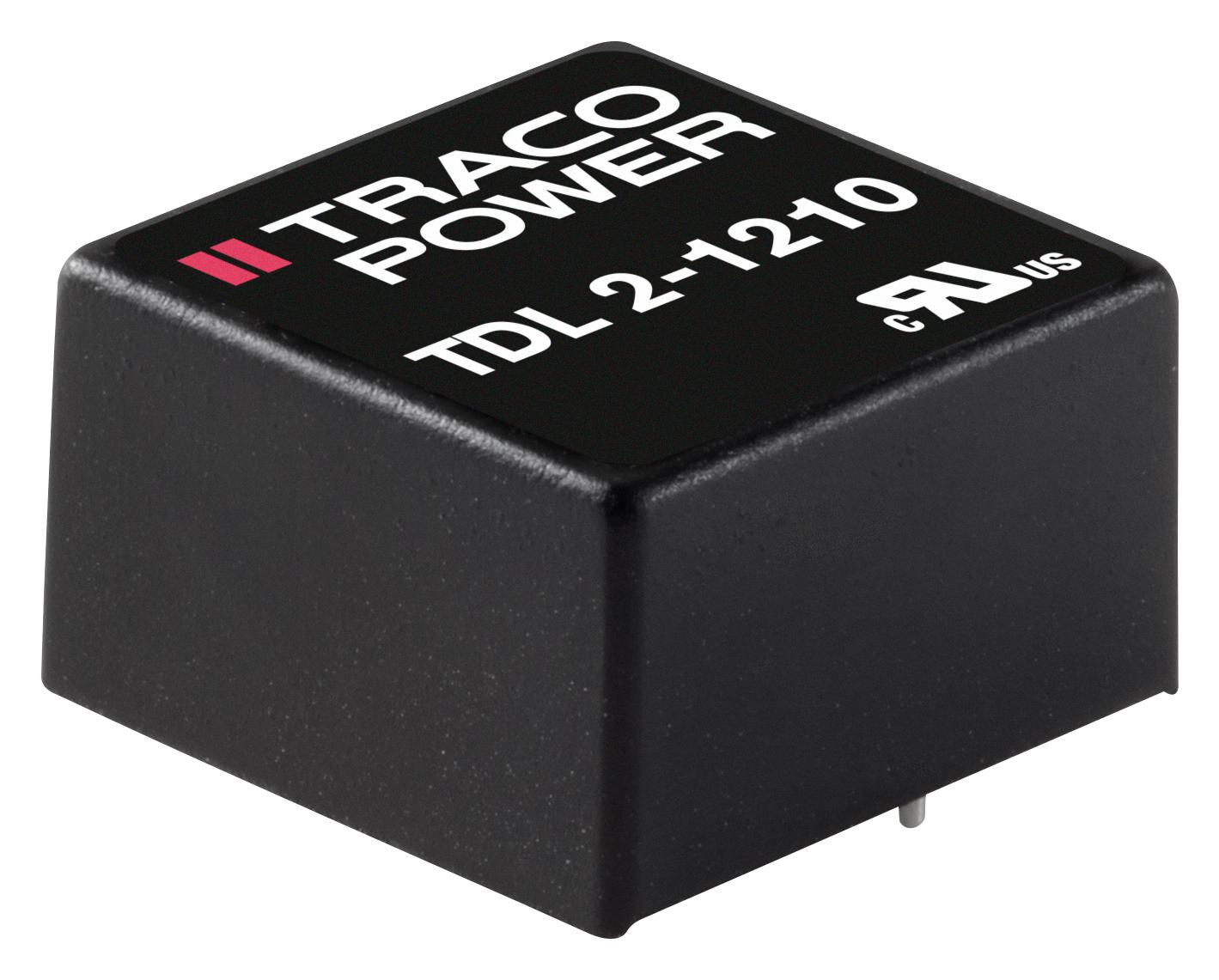

TRACO POWER TDL24810 DC/DC Converter
The TDL 2 series from TracoPower are compact 2W DC/DC converters with regulated outputs supporting wide input ranges of 5V, 12V, 24V, or 48V DC. They offer output voltages including 3.3V, 5V, 12V, 15V, and their dual configurations provide ±5V, ±12V, and ±15V options. Efficiency reaches up to 87%, with a switching frequency of at least 100kHz, and they include short circuit protection with automatic recovery. Designed for rugged environments, they feature 1500VDC I/O isolation, low ripple (70mVp-p), and operate from -40°C to 70°C, meeting UL and IEC safety standards with a 3-year warranty.
TRACO POWER TDL24810 DC/DC Converter Specifications:
- Power: 2W
- Input Voltage Range: 4.5-10VDC, 9-18VDC, 18-36VDC, 36-75VDC
- Output Voltage: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Output Current Max: 67mA to 400mA depending on model
- Efficiency: up to 87%
- Ripple and Noise: 70mVp-p (20 MHz bandwidth)
- Isolation Voltage: 1500VDC (60 sec)
- Operating Temperature Range: -40°C to +70°C
- Switching Frequency: ≥100kHz
- Protection: Short circuit with automatic recovery, current limiting
- Physical Case Material: FR4, silicone potting
- Pin Materials: Tinned copper
- Dimensions: 14.0mm x 14.0mm x 7.9mm
- Soldering Temperature: Max 260°C for 10 sec
- Certifications: UL 60950-1, IEC/EN 60950-1
- Reliability MTBF: >4,226,000 hours
- Humidity: 95% RH non-condensing
Buy the TracoPower Series TDL 2 DC/DC Converter: TDL24810
Purchase the high-quality TracoPower TDL24810 DC/DC converter online today. This reliable 2W power supply supports wide input ranges, offers regulated outputs, and includes essential protection features like short circuit protection and high isolation voltage. Perfect for demanding industrial or embedded applications, it delivers high efficiency up to 87%, low ripple, and operates over a broad temperature range. Enjoy fast shipping and a 3-year warranty, ensuring your project’s success with trusted power conversion technology.
Get TracoPower TDL24810 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TDL24810?
You can click on the BUY or RFQ button to purchase TDL24810 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL24810?
You can download the TDL24810 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL24810?
TRACO POWER
