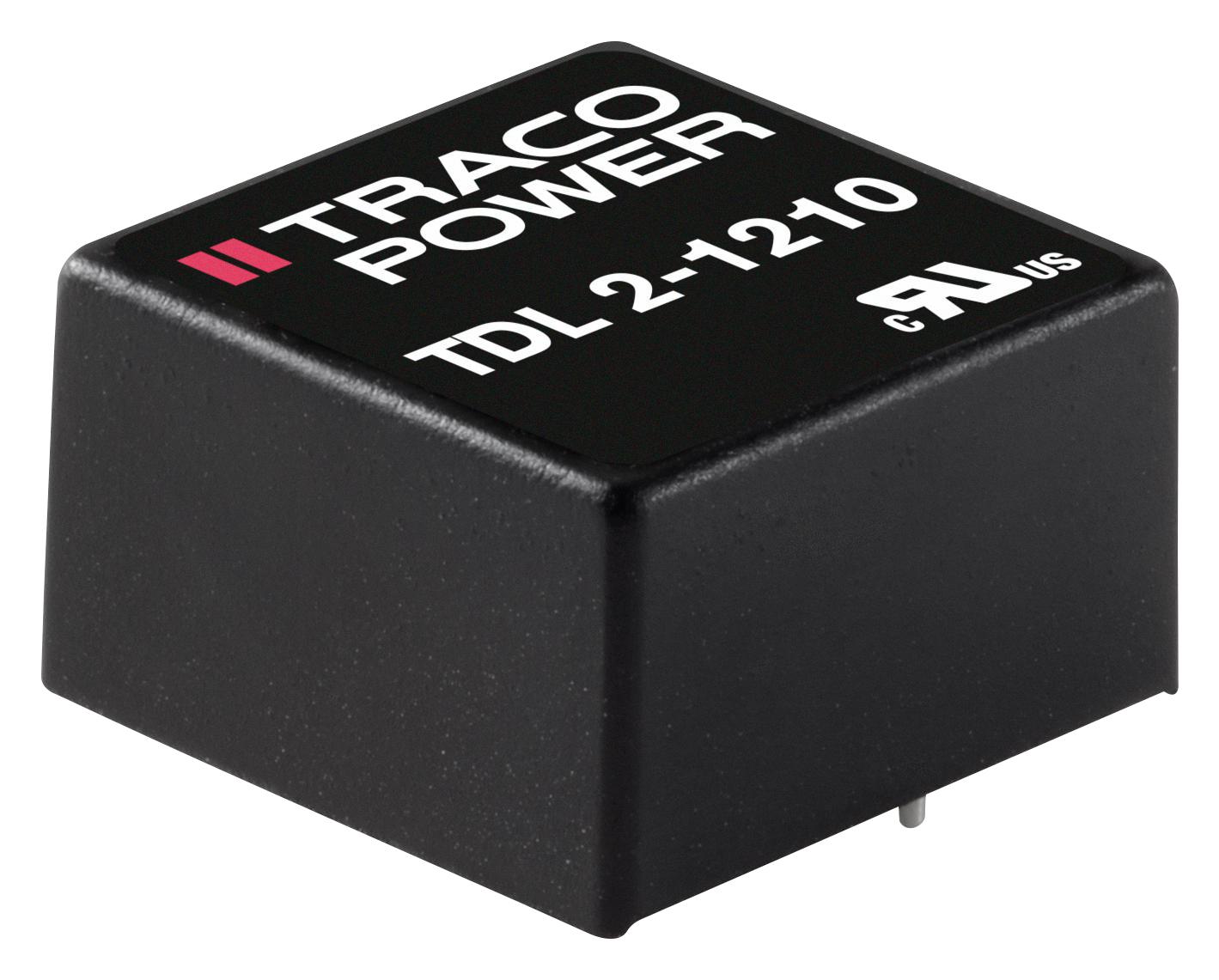

TRACO POWER TDL20511 DC/DC Converter
The TDL 2 series from Tracopower offers compact 2W DC/DC converters suitable for industrial applications requiring reliable voltage regulation. Featuring a wide input voltage range from 4.5V to 36V, these units provide stable output voltages such as 3.3V, 5V, 12V, and 15V, with efficiencies reaching up to 87%. Their small DIP package (14mm x 8mm x 14mm) ensures easy integration into space-constrained environments. Equipped with automatic short circuit protection, high isolation voltage of 1500VDC, and low ripple of 70mVp-p at 20 MHz, they meet UL and IEC safety standards. Operating from -40°C to +70°C, these converters ensure dependable power supply for industrial embedded systems.
TRACO POWER TDL20511 DC/DC Converter Specifications:
- Input Voltage Range: 4.5 - 36 VDC
- Output Voltages: 3.3 V, 5 V, 12 V, 15 V, ±5 V, ±12 V, ±15 V
- Output Current Max: 400 mA for standard voltages, up to 200 mA in bipolar options
- Efficiency: Up to 87%
- Ripple & Noise: 70 mVp-p at 20 MHz bandwidth
- Isolation Voltage: 1500 VDC
- Isolation Capacitance: 100 pF
- Isolation Resistance: >1 GΩ
- Operating Temperature Range: -40°C to +70°C
- Short Circuit Protection: Continuous, automatic recovery
- Dimensions: 14 mm x 8 mm x 14 mm (DIP package)
- Soldering Temperature: Max 260°C for 10 sec
- Certifications: UL 60950-1, IEC/EN 60950-1
- Switching Frequency: 100 kHz min.
Buy the Tracopower TDL 2 Series – Reliable DC/DC Converters for Industrial Applications
Secure your Tracopower TDL 2 Series 2W DC/DC converter now to enhance your industrial power systems. These compact and highly efficient converters offer wide input ranges, reinforced insulation, and reliable short circuit protection. Perfect for demanding environments, their small DIP package saves space, while high efficiency up to 87% reduces energy loss. With compliance to UL 60950-1 and IEC safety standards, plus a three-year warranty, they provide dependable power regulation for embedded systems, automation, and industrial equipment worldwide. Buy online today for fast delivery and quality assurance.
Order your Tracopower TDL 2 Series 2W DC/DC Converter today and ensure a stable, efficient power supply in your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TDL20511?
You can click on the BUY or RFQ button to purchase TDL20511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL20511?
You can download the TDL20511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL20511?
TRACO POWER
