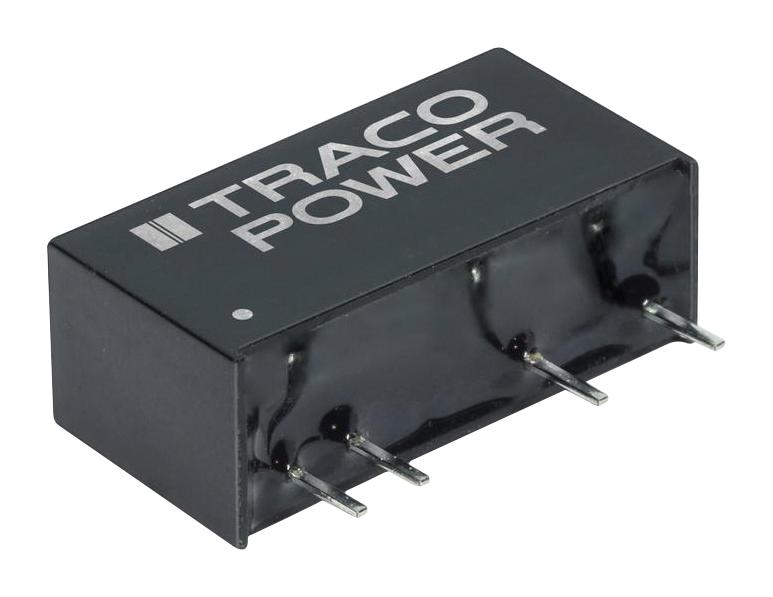

TRACO POWER TRV11213M Medical Isolation Converter
The TRV series of 1 Watt DC/DC converters provides reliable medical and industrial isolation with reinforced 5000 VAC insulation, short circuit protection, and semi-regulated outputs. Operating from 5, 12, 15, or 24 VDC with an operating temperature range of -40 to +85°C, these converters ensure safety and stability in sensitive applications. Certified according to IEC/EN/ES 60601-1 for 2xMOPP and IEC/EN/UL 62368-1 standards, they feature low leakage current (< 2 pA), high efficiency up to 85%, and are suitable for operation at altitudes up to 5000 meters. Ideal for medical systems requiring isolation, safety, and durability.
TRACO POWER TRV11213M Medical Isolation Converter Specifications:
- Input Voltage Range: 5, 12, 15, 24 VDC (±10%)
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, -5 V, -12 V, -15 V
- Output Current: 34 mA to 303 mA depending on model
- Isolation Voltage: 5000 VAC reinforced insulation
- Operating Temperature: -40°C to +85°C without derating
- Efficiency: Up to 85%
- Leakage Current: < 2 pA
- Safety Certifications: IEC/EN/ES 60601-1 (2xMOPP), IEC/EN/UL 62368-1
- Short Circuit Protection: Continuous, automatic recovery
- Dimensions: 19.6 mm x 6 mm x 13 mm (approximate)
- Housing: Non-conductive plastic UL94 V-0 rated
- Insulation Resistance: > 70,000 MΩ at 500 VDC
- Input Surge Voltage: 6 VDC (5 V input), 25 VDC (12 V, 15 V inputs), 40 VDC (24 V input)
- Operating Altitude: Up to 5,000 meters
- Switching Frequency: 220-380 kHz
- Certification: RoHS, Reach compliant
Buy the TRACO POWER TRV11213M – Reliable Medical Isolation Converter for Industrial Applications
Purchase the TRACO POWER TRV11213M converter online today and benefit from a reliable, compact, and certified solution for medical and industrial applications. With reinforced 5000 VAC isolation, low leakage current, and efficient operation up to 85%, this converter ensures safety, durability, and optimal performance in sensitive environments. Its wide input voltage range and operating temperature from -40°C to +85°C make it versatile for various setups. Perfect for safety-critical systems needing certified medical isolation and high reliability, order now to enhance your project seamlessly.
Get TRACO POWER TRV11213M today—built for medical safety and industrial reliability with reinforced isolation and high efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER TRV11213M?
You can click on the BUY or RFQ button to purchase TRV11213M from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRV11213M?
You can download the TRV11213M datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRV11213M?
TRACO POWER
