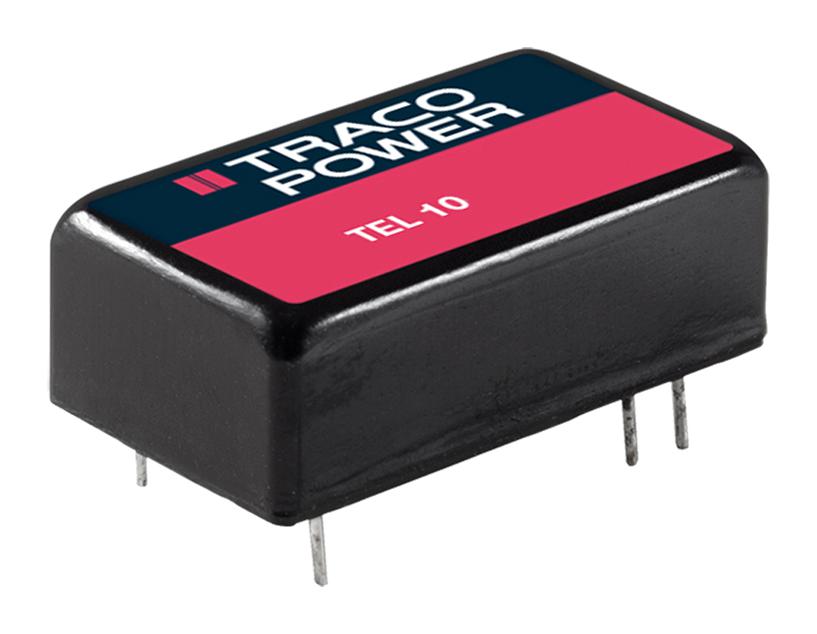

TRACO POWER TEL102423 DC/DC Converter
The TEL 10 series from Traco Power offers a highly compact 10 Watt DC/DC converter with a DIP-16 metal package. It features a wide 2:1 input voltage range from 9 V to 48 V, high efficiency up to 88%, and a robust metal housing with insulated base. Suitable for space-critical applications, it includes built-in filters to meet conducted emission standards, with operational temperatures from -40°C to +88°C. This reliable converter provides power density of 3.83 W/cm², current limiting, short circuit protection, and is certified for industrial and multimedia equipment safety standards.
TRACO POWER TEL102423 DC/DC Converter Specifications:
- Input Voltage Range: 9-48 VDC, 2:1 ratio
- Output Power: 10 Watts
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +88°C
- Isolation Voltage: 1,800 VDC (input to output)
- Ripple and Noise: 60-96 mVp-p depending on model
- Dimensions: 16 mm x 20.3 mm x 10 mm (approximate)
- Housing Material: Aluminum alloy, black anodized
- Protection: Short circuit, overload, built-in filters for conducted emission compliance
- Certification: UL 62368-1, IEC 62368-1, EN 55032 Class A, RoHS, Reach
Buy the Traco Power Series TEL 10 DC/DC Converter: TEL102423
Purchase the Traco Power TEL 10 series 10 Watt DC/DC converter online today and benefit from superior efficiency, compact design, and reliable electrical isolation. Perfect for space-constrained industrial electronics, instrumentation, and multimedia equipment, this converter offers wide input voltage support, built-in filters, and robust protections including short circuit and overload safeguards. Enjoy quick, secure ordering and ensure your projects are powered by industry-leading quality and performance, backed by a 3-year product warranty for peace of mind.
Buy Traco Power TEL 10 series 10 Watt DC/DC converter now and experience unmatched reliability and high efficiency for your industrial needs.
