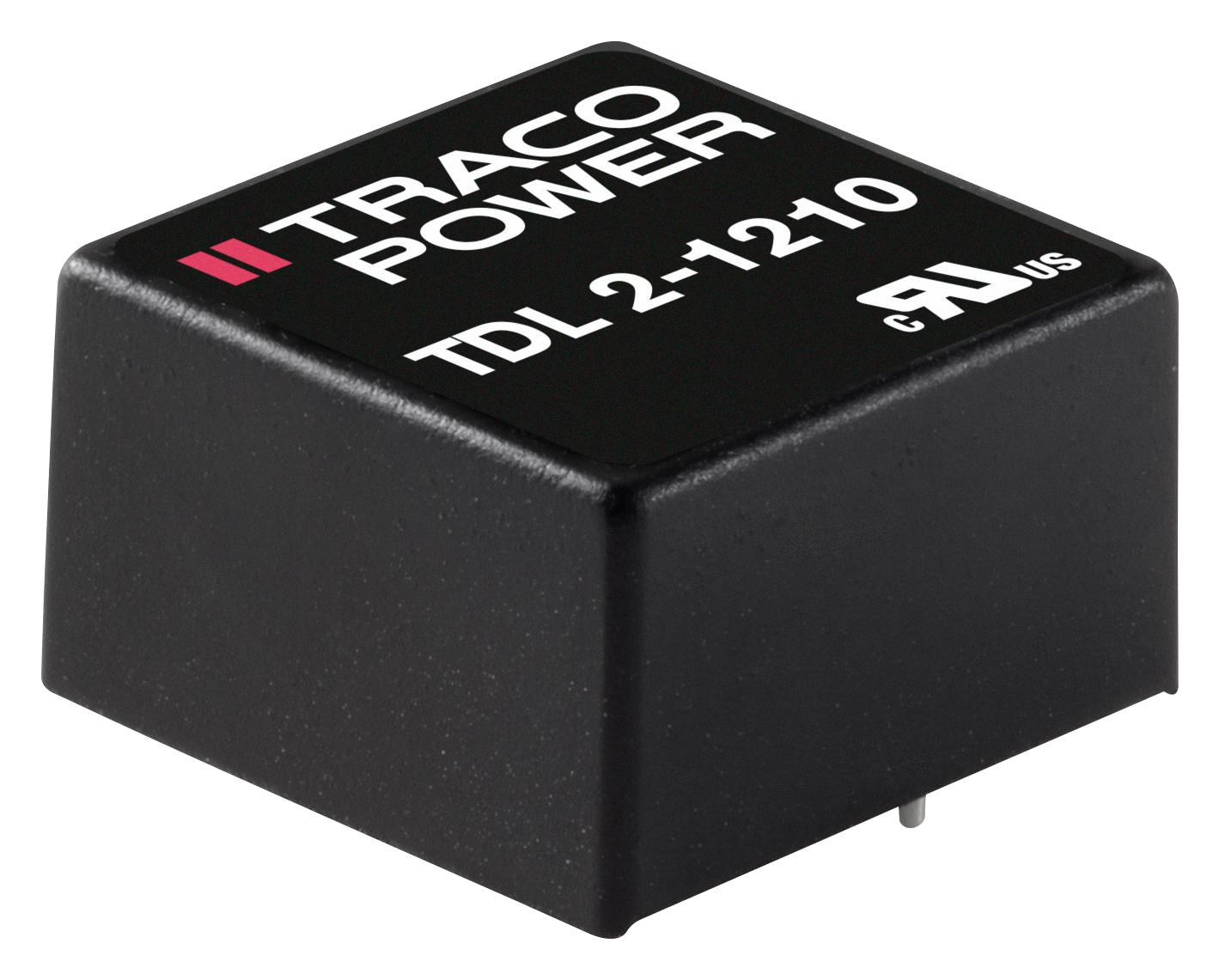

TRACO POWER TDL21212 DC/DC Converter
The TDL 2 series from TracoPower consists of 2W DC/DC converters with single or dual regulated outputs. These compact modules feature a wide 2:1 input voltage range and are housed in a small DIP package measuring 14mm wide, 8mm high, and 14mm deep. They offer continuous, automatic recovery short circuit protection and current limiting. The series supports nominal input voltages of 5V, 12V, 24V, or 48VDC, with output voltages including 3.3V, 5V, 12V, 15V, ±5V, ±12V, and ±15V. Maximum output currents range from 67mA to 400mA depending on configuration. The converters achieve efficiencies up to 87%, with a minimum switching frequency of 100kHz. They provide 1500VDC I/O isolation for 60 seconds, with typical isolation capacitance of 100pF and resistance exceeding 1 Gohm. Ripple and noise levels (20 MHz bandwidth) are typically 70mVp-p. Certified under UL 60950-1 and IEC/EN 60950-1 safety standards, they operate reliably across temperatures from -40°C to 70°C, and come with a 3-year warranty.
TRACO POWER TDL21212 DC/DC Converter Specifications:
- Input voltage: 5V, 12V, 24V, 48VDC
- Output voltage: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Maximum output current: 67mA to 400mA depending on model
- Isolation voltage: 1500VDC for 60 seconds
- Isolation capacitance: 100pF typical
- Isolation resistance: >1 Gohm
- Ripple and noise: 70mVp-p typical (20 MHz bandwidth)
- Efficiency: Up to 87%
- Operating temperature: -40°C to +70°C
- Switching frequency: >100kHz
- Certifications: UL 60950-1, IEC/EN 60950-1
- Dimensions: 14mm x 8mm x 14mm (WxHxD)
- Potting material: Silicone
- Pin material: Tinned copper
- Soldering temperature: Max 260°C for 10 sec
Buy the Traco Power Series TDL 2 DC/DC Converter: TDL21212
Purchase the Traco Power TDL21212 DC/DC converter online and enjoy fast delivery of this high-efficiency, 2-watt module. Designed for industrial use, it provides regulated outputs, outstanding efficiency up to 87%, and rugged construction with 1500VDC isolation. Ideal for automation, instrumentation, and control systems, this converter operates reliably across a wide temperature range from -40°C to +70°C. Its compact size (14mm x 8mm x 14mm) allows easy integration into tight spaces. Enjoy peace of mind with certification compliance, a 3-year warranty, and a straightforward online buying process tailored for engineers and technicians.
Get Traco Power TDL21212 today—built for reliable voltage regulation and durability in compact industrial circuits.
Frequently Asked Questions
Where can I buy TRACO POWER TDL21212?
You can click on the BUY or RFQ button to purchase TDL21212 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL21212?
You can download the TDL21212 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL21212?
TRACO POWER
