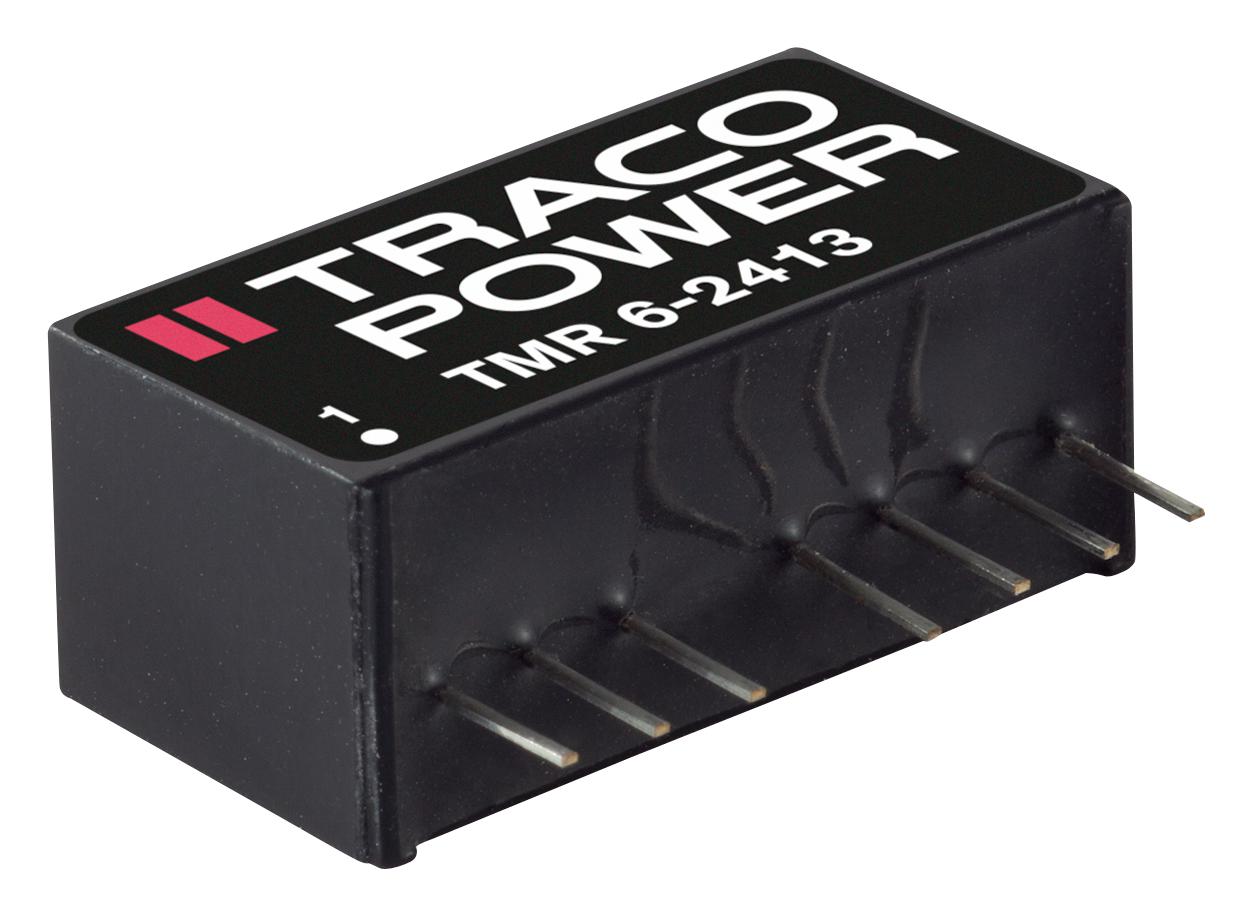

TRACO POWER TMR61211 DC/DC Converter
The TMR 6 Series is a compact, high-efficiency 6-watt DC/DC converter family in a SIP-8 package, ideal for space-critical applications in communication, industrial, and instrumentation sectors. Featuring a wide 2:1 input voltage range, remote On/Off control, and automatic short-circuit protection, these converters operate in temperatures from -40°C to +65°C. They provide high isolation of 1600 VDC and meet safety standards like UL 60950-1. The robust design ensures reliable performance in demanding environments with a case temperature up to +105°C.
TRACO POWER TMR61211 DC/DC Converter Specifications:
- Input voltage range: varied models from 3.3 VDC to 75 VDC
- Output voltage options: 3.3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 36 V, 48 V, 75 V
- Maximum output current: 600 mA for most models
- Efficiency up to 86%
- Isolation voltage: 1600 VDC for 60 seconds
- Operating temperature: -40°C to +65°C
- Storage temperature: -55°C to +125°C
- Ripple and noise (20 MHz bandwidth): max 50 mVp-p
- Protection: continuous short-circuit, automatic recovery
- Remote On/Off control: pin controlled
- MTBF: >2.1 million hours
- Dimensions: 20 mm x 20 mm x 10 mm
- Weight: 4.8 grams
- RoHS compliant, UL approved
Buy the Traco Power TMR61211 – Reliable High-Efficiency DC/DC Converter for Industrial Applications
Order the Traco Power TMR61211 online today and enjoy the benefits of a highly efficient, compact 6-watt DC/DC converter designed for industrial applications. Featuring a wide input voltage range of up to 75 VDC, high isolation of 1600 VDC, and a robust construction that withstands temperature extremes from -40°C to +65°C. Its small footprint of only 20 mm x 20 mm makes it ideal for tight spaces in communication, instrumentation, and industrial equipment. Plus, with automatic short-circuit protection and UL safety certification, this converter ensures reliable, safe operation for your demanding projects.
Buy Traco Power TMR61211 now and experience unmatched reliability and performance in space-constrained industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TMR61211?
You can click on the BUY or RFQ button to purchase TMR61211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR61211?
You can download the TMR61211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR61211?
TRACO POWER
