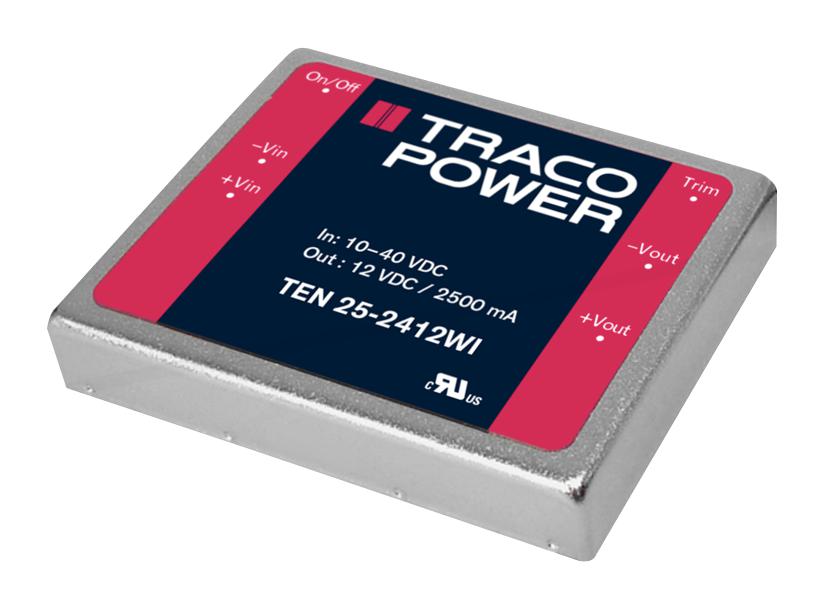

TRACO POWER TEN252411WI DC-DC Converter Module
The TEN 25WI series provides high-performance DC/DC converter modules delivering up to 30 Watts in a compact, low-profile case. Featuring an ultra-wide 4:1 input voltage range, these converters include key features such as remote On/Off, adjustable output voltage, over-voltage, over-temperature, and short circuit protections. Internal EMI filters meet EN 55032, class A standards, making them suitable for industrial electronics, communication systems, and battery-powered equipment. Multiple output options with high efficiency up to 89% ensure reliable power conversion under diverse operating conditions.
TRACO POWER TEN252411WI DC-DC Converter Module Specifications:
- Input Voltage Range: 10 - 40 VDC or 18 - 75 VDC
- Output Voltages: 3.3 V, 5 V, 12 V, 15 V, ±12 V, ±15 V
- Output Current: 2,000 to 5,500 mA depending on model
- Efficiency: up to 89%
- Isolation Voltage: 1500 VDC
- Input Current No Load: 10-20 mA
- Input Current Full Load: 460-1,400 mA
- Surge Voltage: 50 - 100 V max
- Temperature Range: -40°C to +85°C (with derating)
- Humidity: 95% rel H max
- Isolation Resistance: >1,000 MOhm
- Switching Frequency: 330 kHz
- Safety Standards: UL60950-1, IEC/EN 60950-1
- Dimensions: Compact low-profile, specific dimensions vary
- Weight: 56 g
- Soldering Temperature: 265°C / 10s max
- RoHS & Reach compliant
- Safety Certifications: UL/cUL
Buy the TRACOPOWER TEN 25WI – Reliable DC/DC Converters for Industrial Applications
Order the TRACOPOWER TEN 25WI series online today to benefit from high efficiency, robust protection features, and a compact design. These 30W modules are perfect for industrial electronics, communication systems, and battery-operated equipment. With ultra-wide input ranges, adjustable outputs, and internal EMI filters meeting EN 55032, class A, you can ensure reliable power delivery across various applications. Easy to install and maintain, these converters provide exceptional performance with minimal footprint, making them an excellent choice for demanding environments.
Buy TRACOPOWER TEN 25WI now and experience unmatched reliability and performance in your industrial and communication systems.
