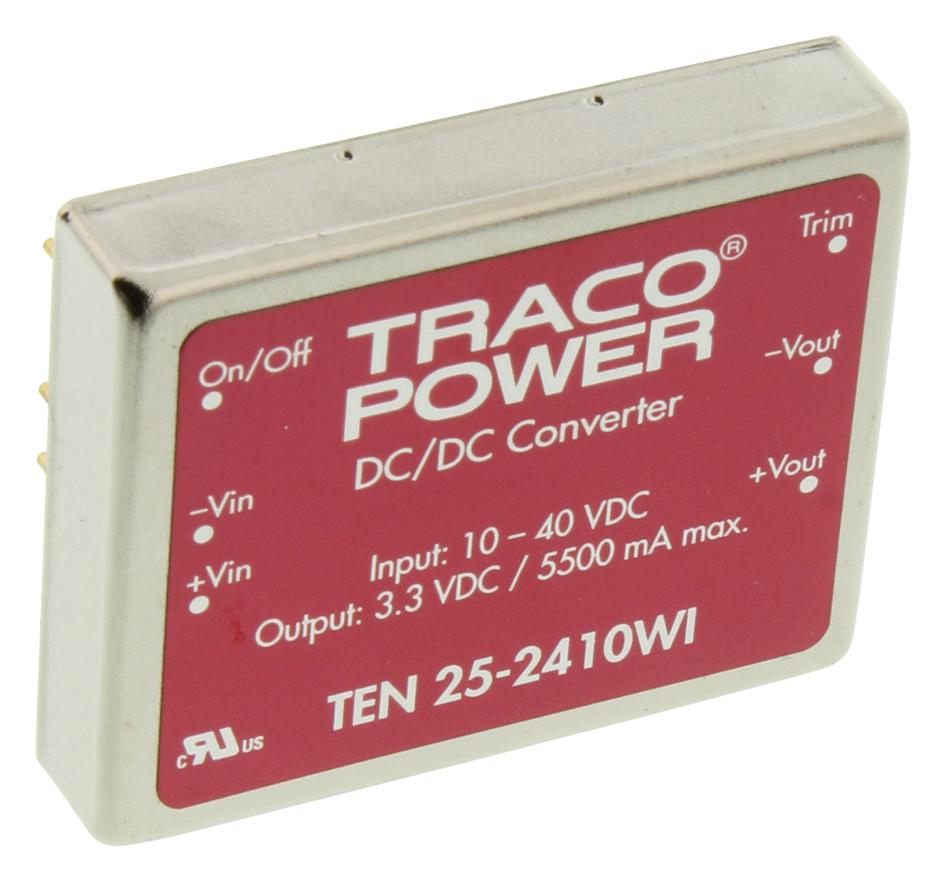

TRACO POWER TEN252410WI DC/DC Converter Module
The TEN 25WI series is a high-performance DC/DC converter family offering up to 30W power with an ultra-wide 4:1 input voltage range. Features include remote On/Off, output voltage trimming, over voltage, over temperature, and short circuit protections, making it suitable for industrial electronics, communication systems, battery-powered devices, and distributed power systems. With internal EMI filtering meeting EN 55032, class A standards, these compact modules ensure reliable operation across various operating conditions, boasting high efficiency, industrial safety certifications, and a 3-year warranty, ideal for demanding power management applications.
TRACO POWER TEN252410WI DC/DC Converter Module Specifications:
- Input voltage range: 3.3 VDC to 40 VDC, 48 VDC models available
- Output voltages: 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V with adjustable options
- Output current: up to 5A depending on model
- Efficiency: up to 89%
- Isolation voltage: 1500 VDC
- Operating temperature: -40°C to +85°C (derating above 55°C)
- Humidity: 95% non-condensing
- Switching frequency: 330 kHz
- Safety standards: UL60950-1, IEC/EN 60950-1, RoHS compliant
- Dimensions: Low profile, industry standard footprint, weight approximately 56g
- Protection features: Over voltage, over temperature, short circuit, reverse polarity protection
- Remote On/Off: - On: 2.5 to 100 VDC or open circuit; Off: 1.0 to +1.0 VDC or short circuit pin 3 and 2
- Reliability: MTBF over 550,000 hours at +25°C
Buy the Traco Power Series TEN 25WI DC/DC Converter: TEN 25-2410WI
Purchase the Traco Power TEN 25-2410WI DC/DC converter module online today for your industrial and communication power needs. This compact, high-efficiency module offers all essential protections including over voltage, temperature, and short circuit. Its ultra-wide input range, EMI filtering, and high safety standards ensure reliable operation under demanding conditions. Equipped with remote On/Off, output voltage trimming, and an industrial-grade design, it is the ideal choice for battery-powered devices, distributed power systems, and critical electronic applications. Buy now to enhance your system’s performance and ensure long-term stability.
Buy Traco Power TEN 25-2410WI online now and experience unmatched reliability and high efficiency in power management for industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN252410WI?
You can click on the BUY or RFQ button to purchase TEN252410WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN252410WI?
You can download the TEN252410WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN252410WI?
TRACO POWER
