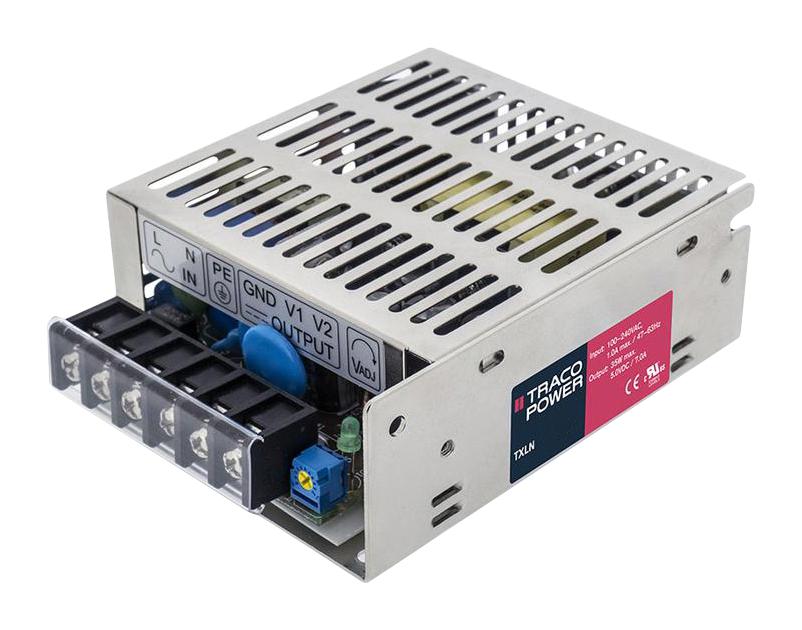

TRACO POWER TXLN035215 Power Supply
The TXLN 035 series is a family of compact, encased power supplies suitable for cost-critical applications. Featuring a low-profile aluminum case and screw terminal connections for easy installation, these power supplies support universal input from 88 to 264 VAC. They are convection cooled (fanless), offer high efficiency up to 79%, and comply with European EMC standards, the Low Voltage Directive (LVD), and IEC/EN/UL 62368-1 safety standards. The units include protections against short circuits, overvoltage, and overload, and are designed for a pollution degree of PD 2 and overvoltage category OVC II. Operating efficiently over a temperature range of -20°C to +70°C with a switching frequency between 58KHz and 72KHz (PWM), they are suitable for various industrial environments. The product comes with a 3-year warranty and is prepared for protection class I (connection to PE).
TRACO POWER TXLN035215 Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC (designed for, no certification)
- Input Frequency: 47-63 Hz
- Input Current at full load, 115 VAC: 1,000 mA max.
- Efficiency: Up to 79%
- Output Power: 35 W
- Output Voltage: 5 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC, 3.3 VDC, 9 VDC, 36 VDC, 42 VDC, 30 VDC (various models)
- Output Current: Ranges from 700 mA to 4,000 mA depending on model
- Output Voltage Adjustment: ±10% via trim potentiometer
- Ripple & Noise: Max 150 mVp-p for most models
- Protection: Short circuit, overvoltage, overload
- Operating Temperature Range: -20°C to +70°C
- Cooling: Natural convection
- Isolation Voltage: Input to output 3,000 VAC, input to case 1,500 VAC
- Working Voltage (rated): 275 VAC
- Insulation Resistance: 100 MΩ min at 500 VDC
- Safety Standards: EN 62368-1, UL 62368-1, Class I protection
- Certifications: CE, UL compliant
- Humidity: Up to 90% RH (non-condensing)
- Dimensions: Approx. 82 mm x 45.5 mm x 30 mm
Buy the Buy Traco Power TXLN035215 Part Number 35 Watt Online
Purchase the Traco Power TXLN 035 series power supply online today to enhance your industrial applications. Featuring a compact metal case, high efficiency up to 79%, and wide input range, these units are perfect for cost-critical projects. They offer fanless cooling, robust protections, and comply with safety standards like UL 62368-1 and EN 61000-6-3. With a 3-year warranty, easy screw terminal connections, and operation over -20°C to +70°C, secure dependable power supply solutions online now.
Order your Traco Power Series 35 Watt TXLN035215 today and ensure reliable power for your industrial projects with efficient, fanless design.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN035215?
You can click on the BUY or RFQ button to purchase TXLN035215 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN035215?
You can download the TXLN035215 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN035215?
TRACO POWER
