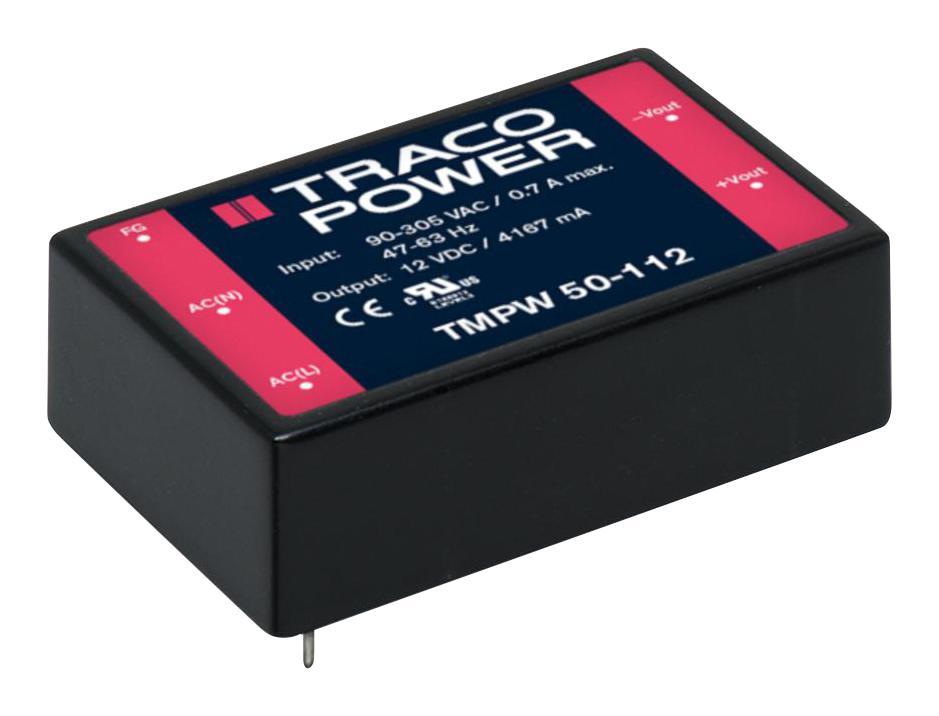

TRACO POWER TMPW50112 Power Supply Module
The TMPW 50 series is a compact 50 Watt AC/DC power supply designed for industrial and household applications. It features wide input voltage support of 90-305 VAC, high efficiency up to 89%, and an extended temperature range of -40°C to +70°C. The unit offers reinforced insulation, 47000 VAC isolation, internal EN 55032 class B filter, and protection for class II applications. Its small form factor and energy-efficient design make it suitable for demanding precision electronics, automation, and building technology projects, ensuring safety, reliability, and compliance with international standards.
TRACO POWER TMPW50112 Power Supply Module Specifications:
- Input Voltage: 90 - 305 VAC (Full Range), 100 - 250 VDC
- Input Frequency: 47 - 63 Hz (designed for 47 - 440 Hz)
- Output Power: 50 Watts
- Output Voltage: 15 VDC, 24 VDC, 42 VDC
- Output Current: 3,333 mA (15 VDC), 2,083 mA (24 VDC), 4,167 mA (42 VDC)
- Efficiency: Up to 89%
- Isolation Voltage: 47000 VAC
- Operating Temperature: -40°C to +70°C
- Protection Class: II (Reinforced insulation)
- Ripple and Noise: 12 VDC: 120 mVp-p, 15 VDC: 150 mVp-p, 24 VDC: 240 mVp-p
- Leakage Current: 250 μA max
- Dimensions: 2.92 inch x 1.85 inch (74.2mm x 47.0mm)
- Housing Material: UL 94V-0 rated plastic
- Insulation: Reinforced
- Cooling: Natural convection
- Vibration: IEC 60068-2-6, 2g, 3 axis, 60 min
- EMC Compliance: EN 55032 class B, EN 61000-3-3
- Safety Standards: IEC 62368-1, UL 62368-1, EN 60335-1
- Certifications: UL, IEC, EN, RoHS, Reach
Buy the Buy TRACO POWER AC/DC Power Supply Part Number TMPW50112 Online
Purchase the TRACO POWER TMPW 50 series online for a reliable 50 Watt AC/DC power supply. Its wide input range of 90-305 VAC, high efficiency up to 89%, and reinforced insulation make it ideal for industrial and home automation projects. Compact and lightweight, it features internal filters, low standby power, and a broad operating temperature of -40°C to +70°C. Certified for safety, with excellent EMC compliance, this power supply guarantees excellent performance and durability for demanding applications. Buy now for seamless integration into your system.
Get TRACO POWER TMPW 50 Series power supply today—designed for high efficiency, safety, and durability in industrial and household applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW50112?
You can click on the BUY or RFQ button to purchase TMPW50112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW50112?
You can download the TMPW50112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW50112?
TRACO POWER
