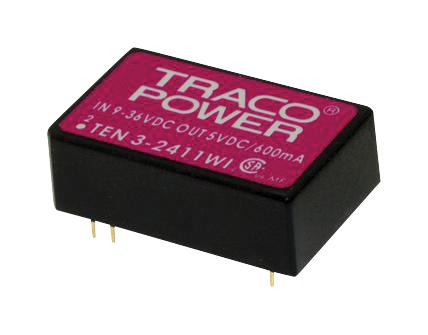

TRACO POWER TEN32411WI DC-DC Converter
The TEN 3WI series from TracoPower offers 3W single and dual output DC-DC converters housed in a 24-pin DIP package. These units feature a wide 4:1 input voltage range, automatic short circuit recovery, current limiting, and internal filtering compliant with EN 55022-A and FCC Level A standards. Suitable applications include battery-powered devices, distributed power systems in communications, instrumentation, and industrial electronics where isolated, well-regulated voltages are essential. Key specifications include input voltages of 24VDC or 48VDC, multiple adjustable output voltages (3.3V, 5V, 12V, 15V, ±12V, ±15V), and maximum output currents up to 750mA.
TRACO POWER TEN32411WI DC-DC Converter Specifications:
- Input Voltage Range: 24VDC or 48VDC
- Output Voltages: 3.3V, 5V, 12V, 15V, ±12V, ±15V
- Output Current Max.: 750mA
- Efficiency: up to 84%
- Isolation Voltage: 1500VDC for 60 seconds
- Operating Temperature: -40°C to +70°C
- Ripple and Noise: <75mVpk-pk
- Switching Frequency: 350kHz typ.
- Dimensions: 20.3mm x 10.2mm x 31.8mm
- Weight: 12g
- Certifications: UL 60950-1, IEC/EN 60950-1
- Operating Humidity: 95% no condensing
- Reverse Voltage Protection: 0.5A max.
- Potting Material: Epoxy
- Soldering Temperature Max.: 265°C / 10 sec.
Buy the TracoPower Series TEN 3WI DC-DC Converter: TEN32411WI
Order the TracoPower TEN32411WI online today and upgrade your power management system with a high-efficiency, reliable, isolated 3W DC-DC converter. Its wide input range, low ripple noise, and extensive safety certifications make it ideal for industrial electronics, communication devices, and battery-powered systems. Enjoy fast delivery and expert support to ensure your applications run smoothly with this robust and ready-to-use power solution. This converter provides excellent regulation and safety for demanding environments.
Buy TracoPower TEN32411WI now and experience unmatched reliability and performance in industrial power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TEN32411WI?
You can click on the BUY or RFQ button to purchase TEN32411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN32411WI?
You can download the TEN32411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN32411WI?
TRACO POWER
