TRACO POWER TEN402422WIE DC-DC Converter
The TEN 40WIE DC/DC converter series expands Traco Power's existing 40W product line. Designed with a focus on high quality and cost efficiency, this series features a compact 2" x 1" metal enclosure and a 4:1 input voltage range. It delivers high efficiency up to 91%, enabling operation over an extended temperature range from -40°C to +85°C without power derating, depending on the model. The converter includes certifications according to the latest IEC/EN/UL 62368-1 standard, and offers extra features such as remote on/off, and protection against short circuits, overvoltage, and overheating. Its high efficiency minimizes heat generation, suitable for natural convection cooling, and it incorporates a copper housing with non-conductive FR4 (UL94 V-0 rated) base. Operating at a switching frequency of approximately 250 kHz, it is ideal for various industrial applications and comes with a 3-year warranty.
TRACO POWER TEN402422WIE DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC / 18-75 VDC / 24 VDC / 48 VDC
- Output Power: 40 Watts
- Efficiency: Up to 93%
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 1600 VDC input-output
- Switching Frequency: approx. 250 kHz
- Power Derating: none up to -40°C to +70°C (model dependent)
- Protection: Short circuit, overvoltage, over temperature
- Remote On/Off: Yes
- Dimensions: 2" x 1" x 0.4" (51 x 25 x 10 mm)
- Housing Material: Copper, with non-conductive FR4 base
- Compliance: IEC/EN/UL 62368-1, UL, IEC
- Certifications: UL 62368-1, IEC 62368-1
- Connectors: Through-hole

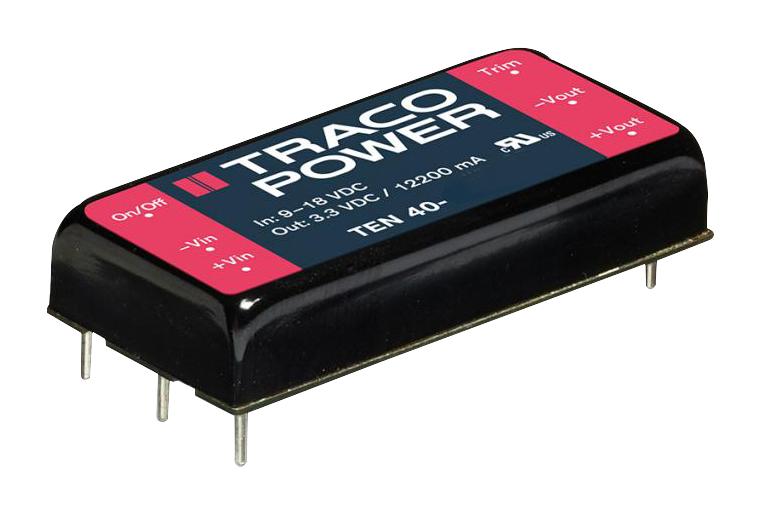

Buy the Traco Power TEN402422WIE – Reliable DC-DC Converter for Industrial Applications
Experience the reliable power solution with the Traco Power TEN 40WIE series. This high-efficiency 40-watt converter features a compact design, wide input voltage range, and comprehensive protections including overload, short circuit, and overvoltage. Certified to IEC/EN/UL standards, it offers industrial-grade performance suitable for a variety of applications. Its minimal heat generation allows for natural convection cooling, making installation flexible and maintenance simple. Trust in the rugged construction, advanced features, and a 3-year warranty to deliver dependable, cost-effective power conversion for your projects.
Order your Traco Power SeriesTEN402422WIE 40W DC-DC Converter today and ensure reliable power supply for demanding industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402422WIE?
You can click on the BUY or RFQ button to purchase TEN402422WIE from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402422WIE?
You can download the TEN402422WIE datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402422WIE?
TRACO POWER
