TRACO POWER TSM0515D DC/DC Converter
The TSM series are compact, 1W isolated DC/DC converters in a molded plastic SMD package, ideal for point-of-load applications, noise reduction, and digital interfaces. They feature high efficiency, operate from -40°C to +85°C, and support reflow soldering up to 245°C. With single and dual outputs, 1000VDC isolation, and RoHS compliance, these converters are suitable for industrial, automation, and power conversion uses, providing reliable ground loop elimination and minimal noise with easy surface-mount installation.
TRACO POWER TSM0515D DC/DC Converter Specifications:
- Power Output: 1 Watt
- Input Voltage Range: 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC (varies by model)
- Output Voltage: 5 VDC, 9 VDC, 12 VDC, 15 VDC (single or dual outputs)
- Output Current Max: 200 mA (varies by model)
- Efficiency: Up to 82%
- Isolation Voltage: 1000 VDC
- Operating Temperature: -40°C to +85°C
- Reflow Solder Temperature: Up to 245°C
- Humidity: Max 95% non-condensing
- Ripple & Noise: 120 mVpk-pk
- Regulation: 1.2%/1% variation over line/load
- Protection: Short circuit limit, reverse voltage protection 0.3A max
- Dimensions: Compact SOIC-14/18 package, typical 7.62 mm x 6.5 mm
- Conformance: RoHS, Reflow solderable, epoxy molding, UL 94V-0 flammability

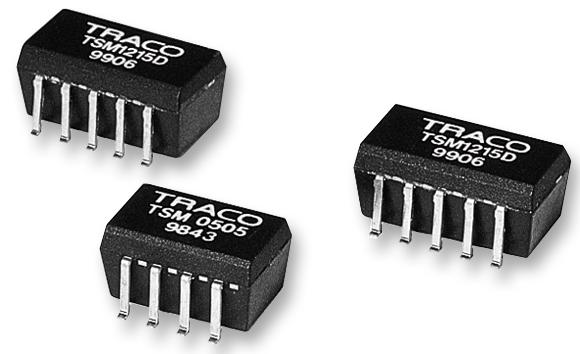

Buy the Buy Traco Power TSM Series Part Number TSM0515D Online
Enhance your power systems with the Traco Power TSM series DC/DC converters, offering 1W isolation, high efficiency, and operating temperature from -40°C to +85°C. These compact, RoHS compliant modules feature high reliability, 1000VDC isolation, and are suitable for industrial, automation, and digital applications. With easy surface-mount installation and reflow soldering capability up to 245°C, they ensure seamless integration into your designs. Upgrade your power solutions today by ordering online for fast delivery and trusted performance.
Buy Traco Power TSM0515D now and experience reliable, efficient power conversion with high isolation in a compact surface-mount design.
Frequently Asked Questions
Where can I buy TRACO POWER TSM0515D?
You can click on the BUY or RFQ button to purchase TSM0515D from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSM0515D?
You can download the TSM0515D datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSM0515D?
TRACO POWER
