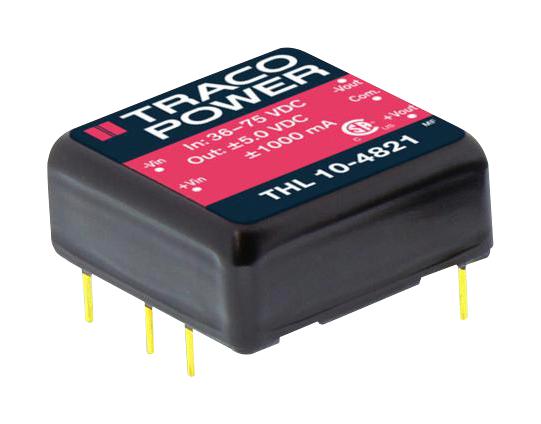

TRACO POWER THL101210 DC/DC Converter
The THL 10 series from Traco Power consists of 10W single and dual output DC/DC converters. These compact power modules are housed in a 1" x 1" shielded metal case with an isolated baseplate, making them a pin-to-pin compatible replacement for larger 1" x 2" designs. They feature an industrial standard pinout, a wide input voltage range (e.g., 12V, 24V, 48V DC), and an input filter that complies with EN 55022 Class A without external components. Designed for versatility, these converters include short circuit and overvoltage protection, operate efficiently up to 89%, and support a temperature range from -40°C to +80°C (up to +85°C with a heat sink). They provide galvanic isolation of 1500VDC with a capacitance of 2000pF and an isolation resistance exceeding 1000 MΩ at 500VDC. Output voltages include 3.3V, 5.1V, 12V, 15V, ±5V, ±12V, and ±15V, with maximum currents from 333mA to 2500mA. Typical ripple and noise levels are 80mVp-p to 100mVp-p across models. The switching frequency is fixed at approximately 300kHz. They meet safety standards UL/cUL 60950-1 and IEC/EN 60950-1, making them suitable for instrumentation, distributed power in communication systems, and industrial electronics. A three-year product warranty is provided.
TRACO POWER THL101210 DC/DC Converter Specifications:
- Power: 10 Watt
- Input Voltage Range: 12V, 24V, 48V DC, wide 2:1 input ratio
- Output Voltage Options: 3.3V, 5.1V, 12V, 15V, ±5V, ±12V, ±15V
- Output Current Max: 2500mA, 2000mA, 830mA, 670mA, 416mA, 333mA depending on model
- Efficiency: Up to 89%
- Operating Temp Range: -40°C to +80°C; up to +85°C with heat sink
- Isolation Voltage: 1500 VDC
- Isolation Capacitance: 2000 pF max
- Isolation Resistance: >1000 MΩ at 500 VDC
- Ripple and Noise: 80mVp-p to 100mVp-p
- Switching Frequency: 300 kHz
- Dimensions: 1” x 1” x 0.4” (approx.)
- Enclosure: Shielded metal case with non-conductive baseplate
- Certifications: UL/cUL 60950-1, IEC/EN 60950-1
- Safety: Meets EN 55022 Class A input filtering without external components
- Protection: Short circuit and overvoltage
- Warranty: 3 years
Buy the Traco Power THL 10-1210 Reliable DC Converter for Industrial Applications
Enhance your industrial and communication systems with Traco Power's THL 10 series. These 10W compact, high-efficiency converters feature wide input ranges, galvanic isolation of 1500VDC, and rugged metal cases. They are designed for reliable operation in temperatures from -40°C to +85°C, with protection against short circuit and overvoltage. Easy to deploy without external filters, meeting EN 55022 Class A standards, and backed by a three-year warranty, these modules ensure optimal performance and durability in demanding environments.
Buy Traco Power THL 10-1210 now and experience unmatched reliability and high efficiency for industrial and communication power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER THL101210?
You can click on the BUY or RFQ button to purchase THL101210 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL101210?
You can download the THL101210 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL101210?
TRACO POWER
