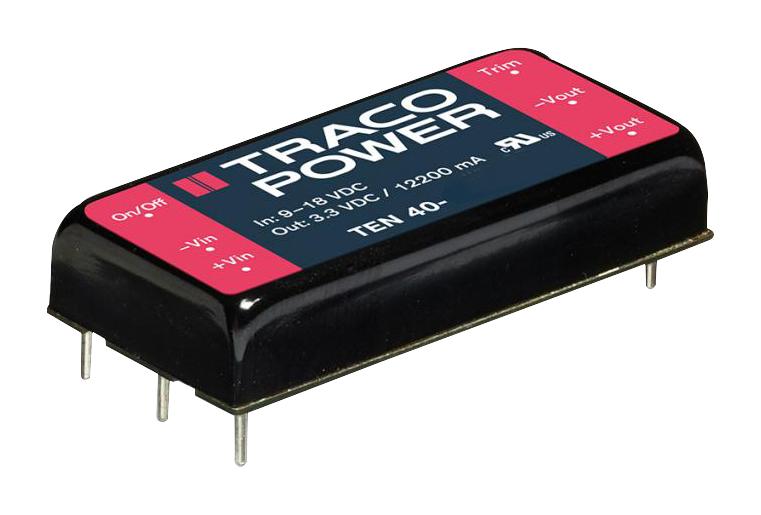

TRACO POWER TEN404815WIE industrial DC/DC converter
The TEN 40WIE series offers a compact 40-watt DC/DC converter with high efficiency up to 93%, operating from -40°C to +70°C without derating. It features a 2"x1" metal package with comprehensive safety and protection features including short circuit, overvoltage, and overtemperature protection. With a wide 4:1 input voltage range (9-36V or 18-75V DC), remote on/off, and 1600 VDC I/O isolation, this series is ideal for industrial applications that demand reliable power conversion within a robust, shielded package.
TRACO POWER TEN404815WIE industrial DC/DC converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 40W
- Efficiency: up to 93%
- Operating Temperature: -40°C to +70°C (model dependent)
- Isolation Voltage: 1600 VDC input to output
- Dimensions: 2" x 1" x 0.4" (approximate)
- Remote On/Off and Trim functions
- Protection: Short circuit, overvoltage, overtemperature
- Input Surge Voltage: 50 VDC (24V models), 100 VDC (48V models)
- Input Current (No load): 15 mA (24V), 10 mA (48V)
- Safety Standards: IEC 62368-1, UL 62368-1
- Vibration Resistance: MIL-STD-810F
- Weight: 34g
- Cooling: Natural convection
- Start-up Time: 30 ms typical
Buy the Traco Power TEN 40WIE – Reliable DC/DC Converter for Industrial Applications
Purchase the Traco Power TEN 40WIE series online today for a reliable, efficient 40-watt DC/DC converter designed for industrial environments. Featuring a compact 2"x1" metal package, this series delivers up to 93% efficiency with a broad 4:1 input voltage range of 9-36V or 18-75V DC. It offers excellent temperature tolerance up to +70°C without derating, high I/O isolation of 1600 VDC, and comprehensive safety features including short circuit, overvoltage, and overtemperature protection. Perfect for demanding industrial equipment needing dependable power solutions.
Get Traco Power TEN 40WIE today—built for high efficiency, rugged reliability, and versatile industrial power conversion.
