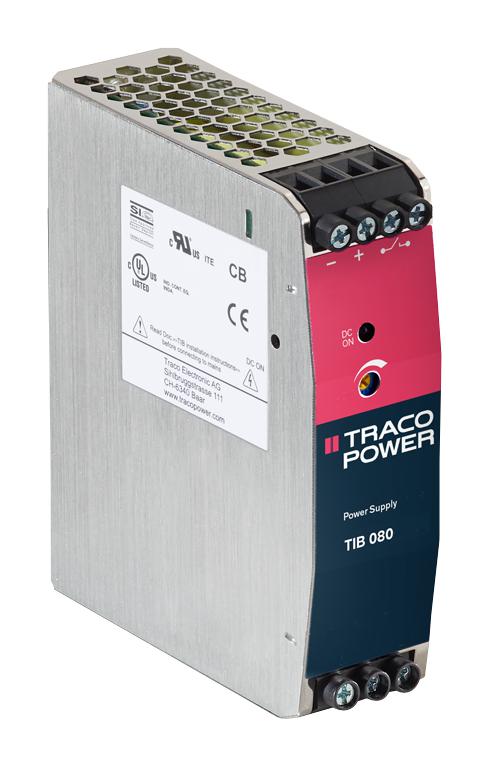

TRACO POWER TIB080112 Industrial Power Supply
The TIB 080 Series is an 80-watt industrial power supply that offers high efficiency up to 90%, compact design, and adjustable output voltage. Its slim profile supports DIN-rail mounting with optional side-mounting for flat panels, ideal for control cabinets and industrial environments. It features active power factor correction, short circuit and overload protection, and a wide operating temperature range from -40°C to +70°C. Capable of delivering 150% peak current for 4 seconds, it ensures reliable operation for stepper motors, solenoids, and actuators. Compliant with safety standards including UL, IEC, and CE.
TRACO POWER TIB080112 Industrial Power Supply Specifications:
- Output Power: 80 Watt
- Output Voltage: 12 VDC (118 - 150 VDC), 24 VDC (23.5 - 280 VDC), 48 VDC (40 - 70 VDC)
- Output Current: 6,700 mA (12 V), 3,400 mA (24 V), 1,700 mA (48 V)
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +70°C maximum
- Peak Current: 150% for 4 seconds
- Mounting: DIN-rail, optional side-mounting for flat panels
- Protective Features: Short circuit and overload protection
- Compliance: UL508, UL 60950-1, IEC 60950-1, CE
- Power Factor Correction: Active power correction ensuring high power factor
Buy the Buy Traco Power TIB Series Part Number TIB080112 Online
Purchase the Traco Power TIB080112 industrial power supply online today and benefit from high-efficiency operation, adjustable output, compact design, and comprehensive safety features. Perfect for control cabinets and industrial applications, it offers reliable power delivery with short circuit and overload protection. Its slim profile supports DIN-rail mounting, with optional side-mounting for flat panels, making installation flexible. Experience 150% peak current capability for 4 seconds, ensuring smooth operation of motors, solenoids, and actuators in demanding environments. Enjoy convenience, safety, and performance in one versatile power supply.
Buy Traco Power TIB080112 now and experience unmatched reliability with high efficiency and adjustable voltage for industrial automation.
Frequently Asked Questions
Where can I buy TRACO POWER TIB080112?
You can click on the BUY or RFQ button to purchase TIB080112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIB080112?
You can download the TIB080112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIB080112?
TRACO POWER
