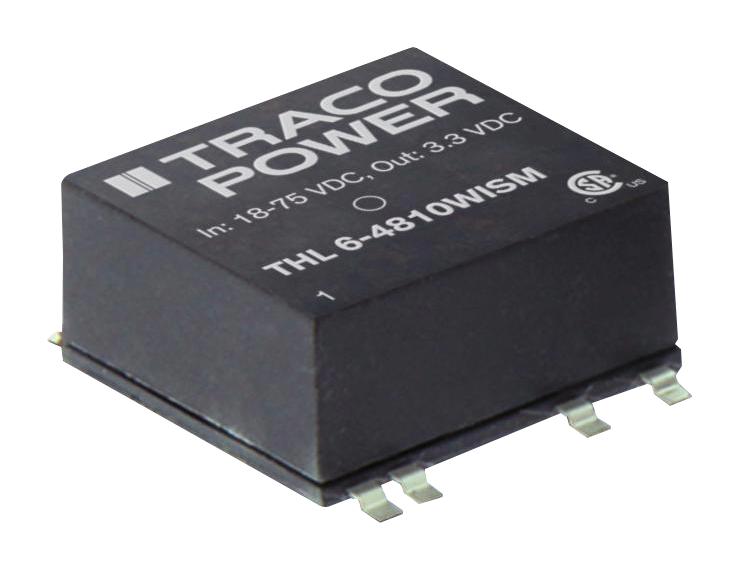

TRACO POWER THL62415WISM DC/DC Converter
The THL 6WISM series from TracoPower consists of compact, surface-mount DC/DC converters with a 6W power rating. These converters feature fully regulated outputs with an ultra-wide 4:1 input voltage range of 24VDC to 48VDC. They are designed with internal filtering that complies with EN55022 Class A standards without requiring external components, simplifying integration. The series includes models with various output voltages such as 3.3V, 5V, 12V, 15V, and 24V, as well as ±5V, ±12V, and ±15V options, with respective maximum output currents up to 1450mA. They provide high efficiency up to 83%, operate at a switching frequency of 330kHz, and feature 1500VDC isolation with resistance exceeding 1 Gohm. These converters have a maximum ripple and noise of 100mVp-p and measure 20.3mm x 10.5mm x 22mm. They conform to UL/cUL 60950-1 and IEC/EN 60950-1 safety standards and are rated for operation from -40°C to +75°C under natural convection conditions. Additional features include remote on/off, short circuit protection, and a 3-year warranty, making them ideal for data, telecom, instrumentation, and industrial electronics applications.
TRACO POWER THL62415WISM DC/DC Converter Specifications:
- Power: 6W
- Input voltage range: 24VDC to 48VDC, 4:1 wide input ratio
- Output voltages: 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, ±15V
- Maximum output current: up to 1450mA
- Efficiency: up to 83%
- Isolation voltage: 1500VDC
- Isolation resistance: >1 GΩ
- Ripple and noise: 100 mVp-p
- Switching frequency: 330 kHz
- Operating temperature: -40°C to +75°C
- Size: 20.3mm x 10.5mm x 22mm
- Weight: 78g
- Safety standards: IEC 60950-1, UL 60950-1
- Standards compliance: EN55022 Class A, FCC Part 15 Level A
- Remote On/Off: Yes
- Short circuit protection: Yes, automatic recovery
- Humidity: 95% non-condensing
- Certifications: UL, cUL, IEC/EN 60950-1
Buy the TracoPower THL62415WISM – Reliable DC-DC Converter for Industrial Applications
Purchase the TracoPower THL62415WISM online today to benefit from a compact, highly efficient 6W DC/DC converter ideal for industrial, telecom, and instrumentation applications. Designed with an ultra-wide input voltage range of 24VDC to 48VDC, these converters feature fully regulated outputs with an efficiency up to 83%, internal EN55022 Class A filtering, and a maximum ripple of 100mVp-p. They provide galvanic isolation of 1500VDC, operate from -40°C to +75°C, and include remote On/Off and short circuit protection. Built to meet safety standards, these converters come with a 3-year warranty, ensuring long-term operational reliability and ease of integration into complex electronic systems.
Get TracoPower THL62415WISM today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER THL62415WISM?
You can click on the BUY or RFQ button to purchase THL62415WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL62415WISM?
You can download the THL62415WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL62415WISM?
TRACO POWER
