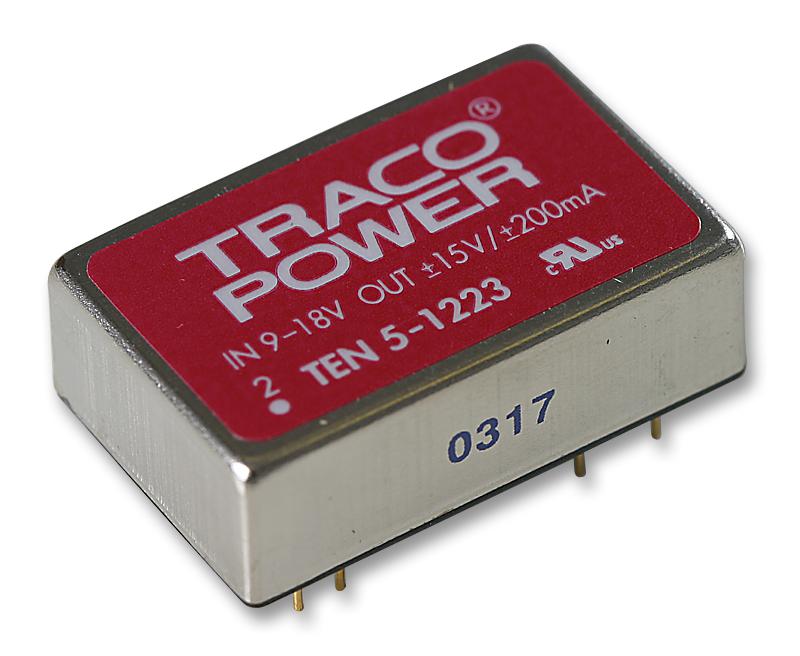

TRACO POWER TEN51223 DC/DC Converter
The Power Ten 5 Series is a collection of highly reliable, compact DC/DC converters with a wide input range of 4.4 VDC to 50 VDC, designed for industrial, communication, and mobile applications. They feature high efficiency up to 86%, full SMD design, and an extended temperature range of -40°C to +85°C. Key features include 1500 VDC isolation, automatic short circuit protection, low noise emission meeting EN 55022 and FCC standards, and MTBF over 1 million hours. These converters are ideal for ensuring stable power supply in demanding environments.
TRACO POWER TEN51223 DC/DC Converter Specifications:
- Input voltage range: 4.4 VDC to 50 VDC
- Output voltage: 12 VDC
- Output current max.: 250 mA
- Efficiency: up to 86%
- Isolation voltage: 1500 VDC
- Operating temperature: -40°C to +85°C
- MTBF: >1 million hours
- Ripple and noise: 50 mVpk-pk typical
- Dimensions: Steel case, weight 16.9 g
- Soldering temperature max.: 260°C / 10 sec.
- Regulation: 0.3% max. (Vin variation), 1-2% load variation
- Short circuit protection: automatic, indefinite
- Isolation capacitance: 380 pF typical
- Switching frequency: 300 kHz
- Safety standards: UL 60950-1, IEC/EN 60950-1
Buy the TRACOPOWER TEN51223 – Reliable DC/DC Converter for Industrial Applications
Get the TRACOPOWER TEN51223 DC/DC converter online today and benefit from high efficiency, robust isolation, and excellent reliability suitable for industrial, communication, and mobile electronic projects. This compact, high-performance power module offers a wide input range, low noise, and automatic short circuit protection, ensuring your devices remain powered reliably even in demanding environments. With fast start-up and exceptional MTBF exceeding one million hours, ordering online guarantees quick delivery and dependable quality for your critical electronic systems.
Order your TRACOPOWER Series TEN51223 today and ensure a stable, efficient power supply for your industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN51223?
You can click on the BUY or RFQ button to purchase TEN51223 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN51223?
You can download the TEN51223 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN51223?
TRACO POWER
