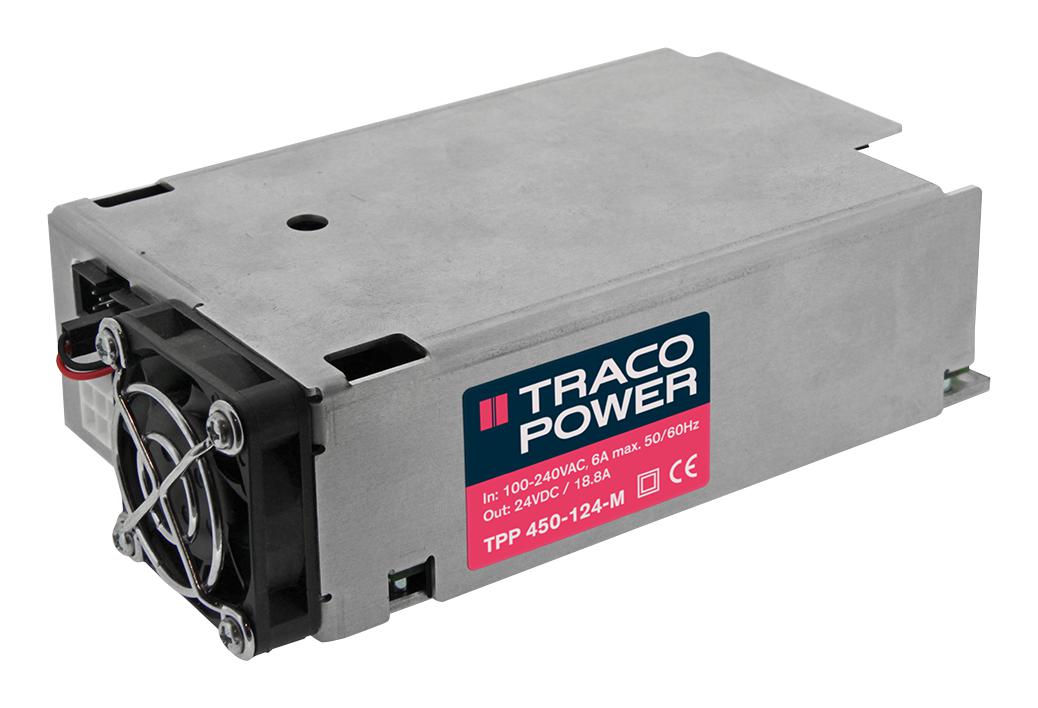

TRACO POWER TPP450112M Medical Power Supply
The TPP 450 Series is a high-efficiency, medical-grade AC/DC power supply providing 450 Watts with a compact 3" x 5.8" footprint. It features reinforced IEC/EN/ES 60601-1 3rd edition safety certification for 2XxMOPP isolation, low leakage current under 100 pA, and isolation voltage of 4000 VAC, making it suitable for BF applications. The series offers fanless operation up to 320W at +50°C and 450W at +65°C with fan, ensuring reliable quiet performance for medical devices. Extensive EMC compliance, adjustable outputs, remote ON/OFF, and high thermal management make it an ideal choice for demanding medical and space-critical applications.
TRACO POWER TPP450112M Medical Power Supply Specifications:
- Input Voltage Range: 85–264 VAC (universal), 120–370 VDC
- Output Power: 450 Watt maximum, 12 VDC, 375A, 24 VDC, 18.75A
- Efficiency: Up to 94%
- Operating Temperature: -40°C to +80°C, fanless operation up to +50°C
- Isolation Voltage: 4000 VAC input to output, 2500 VAC input to ground
- Leakage Current: < 100 pA at 264 VAC
- Protection Class: Medical device safety standards IEC/EN/ES 60601-1
- Dimensions: 3" x 5.8" (76.2 x 147.3 mm)
- Protection Features: Overvoltage, overload, short circuit, and over-temperature protections
- Additional Features: Remote On/Off, Power Good Signal, variable fan speed, 5V standby output
- Vibration, humidity, and altitude ratings suitable for clinical environments
- Compliance: IEC 60601-1, UL 62368-1, EMC standards EN 55032, EN 61000-3-2, EN 61000-3-3
Buy the Traco Power Series TPP450 450 Watt Medical Power Supply: TPP450112M
Purchase the Traco Power Series TPP450 450 Watt medical power supply online today to benefit from high efficiency, reinforced medical isolation, and comprehensive safety features. Designed to meet IEC 60601-1 standards, this power supply ensures reliable, low-noise operation for medical devices. Its fanless design provides quiet performance, making it ideal for clinical environments. With a compact size of 3" x 5.8" and versatile output options, it offers excellent thermal management and space-saving advantages. Get yours now and enhance your medical equipment's safety and performance with trusted quality.
Order your Traco Power Series TPP450 450 Watt medical power supply today and ensure your medical devices operate with high reliability, safety, and efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER TPP450112M?
You can click on the BUY or RFQ button to purchase TPP450112M from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP450112M?
You can download the TPP450112M datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP450112M?
TRACO POWER
