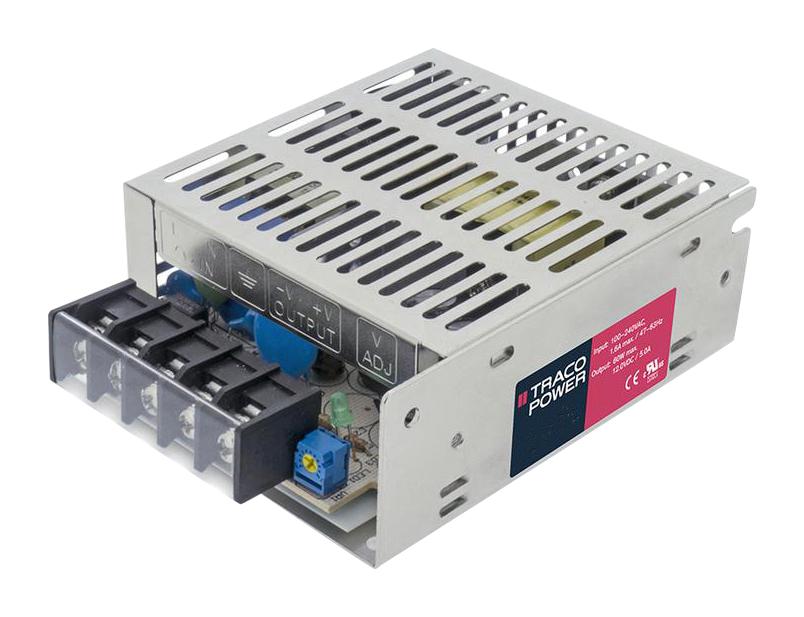

TRACO POWER TXLN060124 Power Supply
The TXLN series is a compact, low-profile power supply designed for cost-sensitive applications. Featuring a robust aluminum case with screw terminal connections, it provides universal input voltage (88-264VAC), high efficiency of up to 84%, and convection cooling for quiet operation. Compliant with European EMC standards, EN 61000-6-3, EN 61000-6-1, and safety approvals like IEC/EN/UL 62368-1, it includes short circuit, overvoltage, and overload protection. The series operates across a wide temperature range from -20°C to +70°C, with a switching frequency around 58-72kHz, and a 3-year warranty, ensuring reliable performance in demanding environments.
TRACO POWER TXLN060124 Power Supply Specifications:
- Input Voltage: 88 - 264 VAC
- Input Frequency: 50-63 Hz
- Output Power: 60 W
- Output Voltage: 24 VDC
- Output Current: 2.5 A
- Efficiency: up to 84%
- Protection: Short circuit, overvoltage, overload
- Isolation Voltage: input to output 3000 VAC, input to case 1500 VAC
- Operating Temperature: -20°C to +70°C
- Cooling: Natural convection
- Switching Frequency: 58-72 kHz
- Dimensions: Not specified in provided data
- Housing Material: Aluminum
- Weight: 340g
- Certifications: IEC/EN/UL 62368-1, EN 61000-6-3, EN 61000-6-1
- Protection Class: Class I
- Pollution Degree: 2
- Overvoltage Category: II
Buy the Traco Power Series TXLN 60W Power Supply: TXLN060124
Purchase the Traco Power TXLN060124 power supply online today and enjoy reliable performance with high efficiency up to 84%, extensive protection features, and compliance with international safety standards. Its compact design and universal input make it ideal for industrial and commercial applications requiring dependable power solutions. With a 3-year warranty, straightforward installation, and convection cooling, this power supply ensures long-lasting durability and safe operation in a variety of demanding environments. Experience quality and performance—buy online now!
Get Traco Power TXLN060124 today—built for robust performance, efficiency, and safety in demanding environments.
