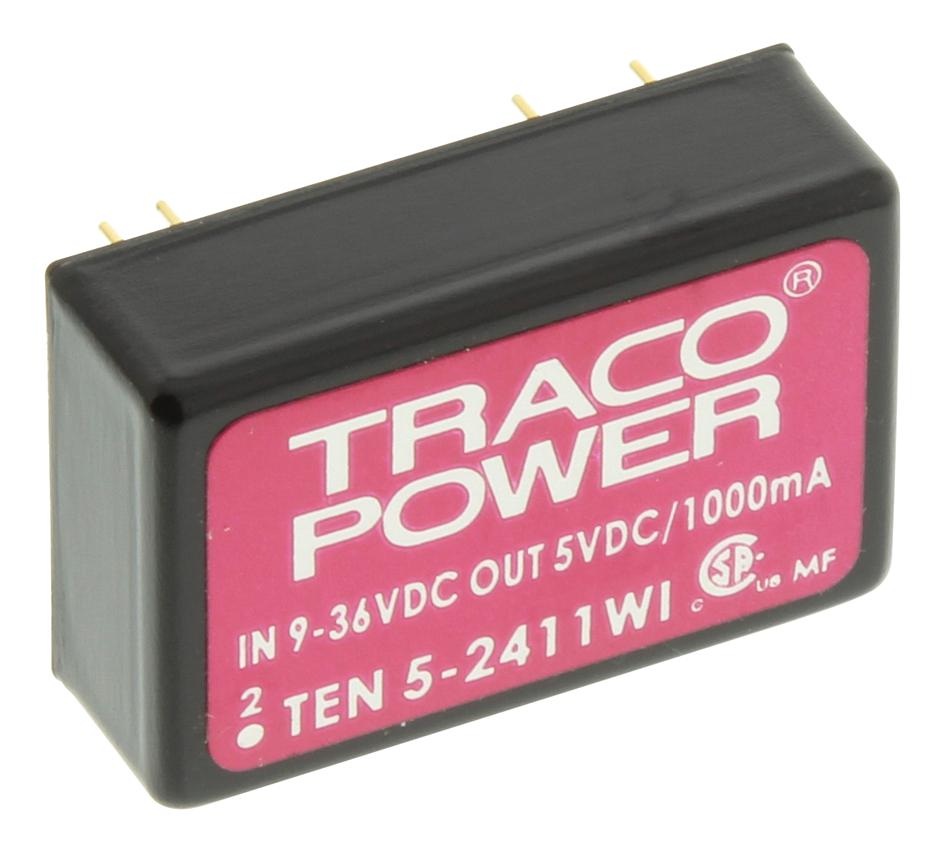

TRACO POWER TEN52411WI DC/DC Converter Module
The POWER TEN 5WI series offers high-performance DC/DC converter modules with 5W power output and ultra-wide input voltage ranges of 9-36 VDC or 18-75 VDC. These compact modules feature high efficiency, full SMD design, and operate reliably from -40°C to +85°C. Suitable for battery-powered devices, communication, industrial electronics, and distributed power architectures, they support isolation of 1500VDC, have built-in filtering, and meet stringent EMI standards. Protected against short circuits and overvoltage, these converters are RoHS compliant and backed by a 3-year warranty.
TRACO POWER TEN52411WI DC/DC Converter Module Specifications:
- Input voltage range: 9-36 VDC or 18-75 VDC
- Output voltage options: 3.3 V, 5 V, 12 V, 15 V, 18-75 V
- Output current: up to 1200 mA
- Efficiency: up to 83%
- Isolation voltage: 1500 VDC
- Operating temperature: -40°C to +85°C
- Temperature coefficient: 0.02 %/K
- Ripple and noise: 80 mVpk-pk
- Start-up voltage: 9 VDC (24 V models), 18 VDC (48 V models)
- Surge voltage: 50 V (24 V models), 100 V (48 V models)
- Input current no load: 20 mA (24 V models), 10 mA (48 V models)
- Switching frequency: 450 kHz
- Compliance: UL 60950-1, IEC/EN 60950-1, RoHS
- Dimensions: 22 mm x 17.5 mm x 12.7 mm
- Weight: 17 g
- Protection: Short circuit, overload, and reverse voltage protection
Buy the Trac Power TEN-5WI – Reliable DC/DC Converter for Industrial Applications
Order the Trac Power TEN-5WI series DC/DC converter modules online today and benefit from high efficiency, wide input voltage range, and robust protection features. These compact converters are ideal for battery-powered devices, industrial automation, and communication equipment, offering reliable performance with up to 83% efficiency and a 1500VDC isolation. Designed to operate from -40°C to +85°C, they ensure stable power delivery in demanding environments. With compliance to safety and EMI standards and a 3-year warranty, purchase now for versatile, dependable power solutions.
Get Trac Power TEN-5WI today—built for precision and long-lasting durability in industrial electronics and communication systems.
