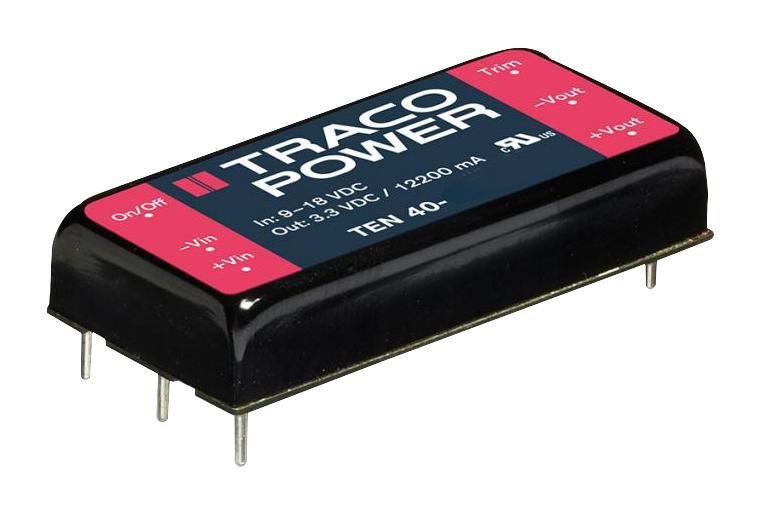

TRACO POWER TEN404822WIE Industrial Power Supply
The TEN 40WIE is a 40-watt industrial power supply series designed for versatile applications, offering high efficiency up to 93%, a wide 4:1 input voltage range of 9-36V or 18-75V DC, and excellent temperature performance from -40°C to +85°C. It features a compact 2x1 inch metal package with 6-side shielding, remote on/off control, and comprehensive protection including short circuit, overvoltage, and overtemperature. Certified with safety standards IEC/EN/UL 62368-1, it suits various industrial environments demanding reliable, efficient power conversion.
TRACO POWER TEN404822WIE Industrial Power Supply Specifications:
- Input Voltage Range: 9-36 VDC / 18-75 VDC
- Output Power: 40 Watts
- Efficiency: up to 93%
- Operating Temperature: -40°C to +85°C
- Protection: Short circuit, overvoltage, overtemperature
- Isolation Voltage: 1600 VDC input/output
- Package Size: 2" x 1" metal enclosure with shield
- Remote On/Off and Trim functions
- Standards: IEC 62368-1, UL 62368-1
- Output Voltage Adjustment: -10% to +20%
- Dimensions: 50.8 mm x 25.4 mm x 20 mm
- Cooling: Natural convection
- Weight: 34 g
- Switching Frequency: 250 kHz
- Vibration Resistance: MIL-STD-810F
Buy the Buy Traco Power TEN 40WIE Series Power Supply Part Number TEN404822WIE Online
Get the Traco Power TEN 40WIE series power supply online today and enjoy high efficiency, robust protection, and wide input voltage compatibility. Perfect for demanding industrial environments, this 40-watt power converter features a compact metal housing, remote control, and comprehensive safety certifications. Easy to integrate with adjustable outputs and natural convection cooling, it guarantees reliable operation from -40°C to +85°C. Purchase now for a cost-effective, durable solution that supports your industrial automation and control applications.
Order your Traco Power TEN 40WIE series power supply today and ensure reliable, efficient power for your industrial projects.
