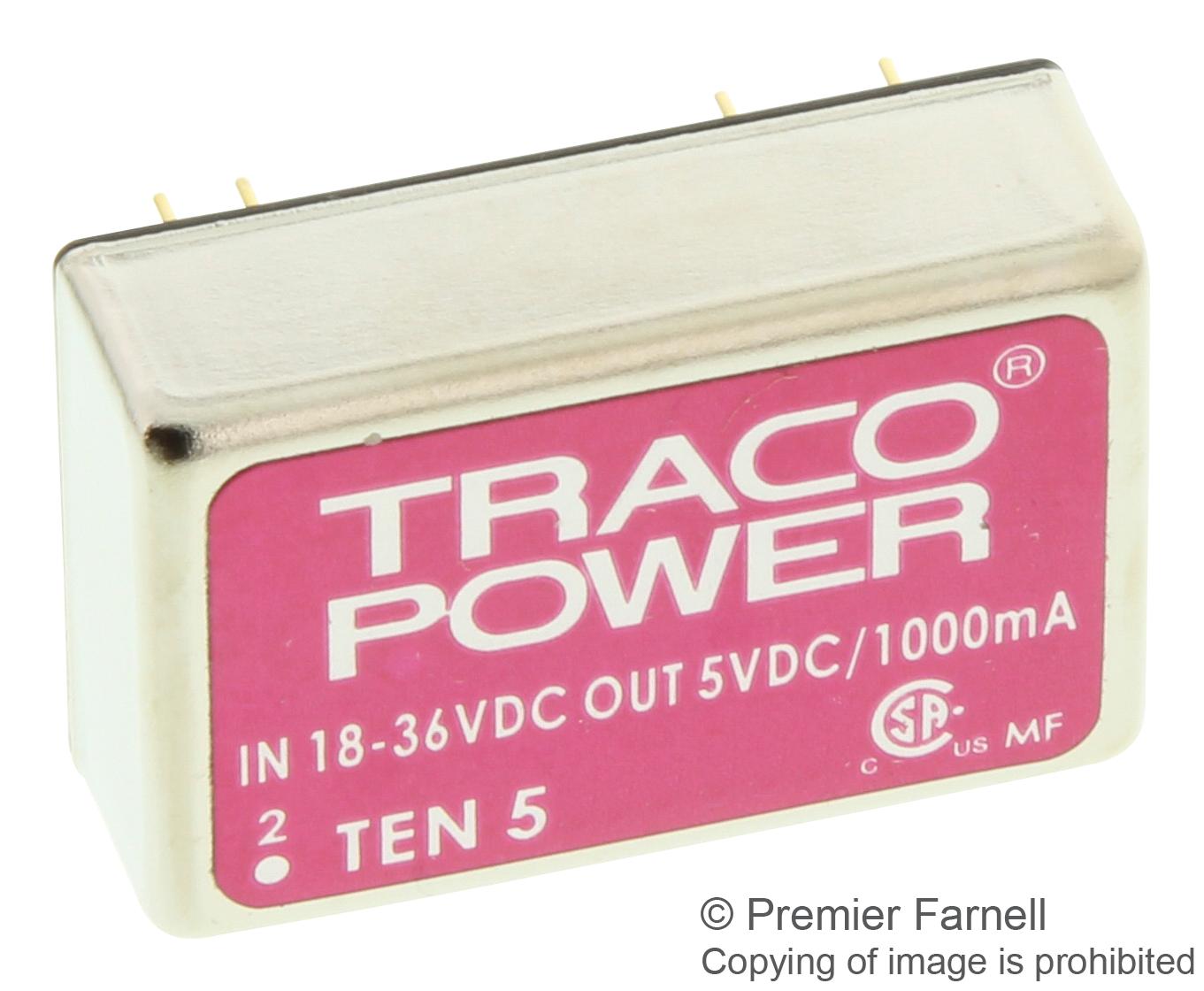

TRACO POWER TEN52413 DC-DC Converter Module
The TEN 5 series from TracoPower consists of isolated, board-mount, single-output DC-DC converters. These converters provide an input-to-output isolation of 1500VDC and comply with conducted noise standards EN 55022-A and FCC Level A, making them suitable for a wide range of industrial and power management applications. They offer high reliability, a compact 6W output power, and a broad input voltage range with a 2:1 ratio. The converters achieve high efficiency up to 86%, feature selectable output voltages, and can deliver output currents from ±200mA up to 1200mA. They operate over an extended temperature range from -40°C to 85°C and include indefinite short circuit protection. Their design includes an input filter meeting EN 55022, class A, and FCC, level A standards without needing external components. The units are housed in a shielded metal case with an insulated base plate and a 24-pin DIP package with a standard pinout.
TRACO POWER TEN52413 DC-DC Converter Module Specifications:
- Input voltage range: 5V to 48V DC, with surge voltage up to 100V max at 48V input
- Output power: 6 Watts
- Output voltage options: 3.3V, 5V, 12V, 15V, 18V, 36V, 75V DC
- Maximum output current: 1200mA
- Efficiency: up to 86%
- Isolation voltage: 1500 VDC (Input/Output)
- Operating temperature: -40°C to 85°C, with derating above 70°C at 3.3%/K
- Ripple and noise: 50 mVpk-pk typical
- Dimensions: Steel case with epoxy potting, 16.9 g weight, standard pinout
- MTBF: over 1 million hours
- Short-circuit protection: indefinite (automatic recovery)
- Soldering temperature: max 260°C for 10 seconds
- Compliance: UL 60950-1, IEC/EN 60950-1, RoHS, Reach
- Input filter: Meets EN 55022, class A, FCC level A standards without external components
Buy the Buy TracoPower TEN52413 Part Number 52413 Online
Order the TracoPower TEN52413 DC-DC converter online today and benefit from high efficiency up to 86%, wide input voltage range, excellent isolation of 1500VDC, and extended temperature operation from -40°C to 85°C. With proven reliability, over 1 million hours MTBF, and compliant with industrial standards, this compact module delivers 6W power with adjustable output voltages suitable for communication systems, industrial automation, and mobile battery-powered devices. Secure your supply chain and ensure optimal performance by purchasing online now.
Buy TracoPower TEN52413 now and experience a highly reliable, efficient, and versatile industrial power conversion solution.
Frequently Asked Questions
Where can I buy TRACO POWER TEN52413?
You can click on the BUY or RFQ button to purchase TEN52413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN52413?
You can download the TEN52413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN52413?
TRACO POWER
