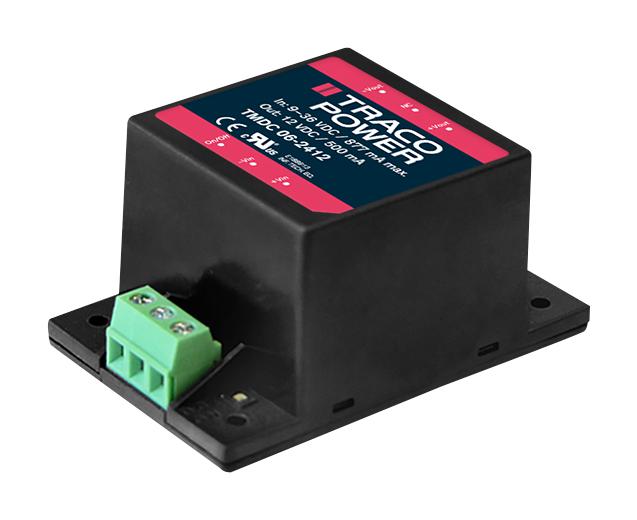

TRACO POWER TMDC062413 Industrial DC/DC Converter
The TMDC 06 series from Traco Power is a 6-watt encapsulated DC/DC converter designed for rugged industrial applications. It features ultra-wide input ranges of 9-36 VDC and 18-75 VDC, with fully regulated single and dual outputs. The modules provide high efficiency up to 85%, with strong isolation of 3000 VDC, enhanced EMC immunity, and built-in filters to meet EN 55032 and EN 55035 standards. Compact and temperature resilient up to -40°C to +80°C, these modules ensure reliability in harsh environments with over-voltage, overload, and short-circuit protections, making them ideal for industrial automation, control systems, and rugged electronic equipment.
TRACO POWER TMDC062413 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC with ultra-wide 4:1 ratio
- Output Power: 6 Watts
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, ±12 V, ±15 V, ±24 V
- Output Current: up to 1.2 A depending on model
- Efficiency: up to 85%
- Isolation Voltage: 3000 VDC
- Operating Temperature Range: -40°C to +80°C without derating
- Protection: Overload, undervoltage, short circuit, automatic recovery
- EMC Compliance: EN 55032 class A, EN 55035 immunity
- Mechanical Dimensions: 2.09 x 1.34 x 1.04 inches (53.0 x 33.8 x 26.5 mm)
- Encapsulation: Fully sealed plastic case (UL 94V-0 rated)
- Connection: Screw terminal
- Certifications: UL 62368-1, IEC 62368-1
- Efficiency: Typical at 85%
- Start-up Time: 30 ms
- Remote Control: Remote On/Off, voltage control
- Safety and Pollution Degree: UL, EN safety standards, Pollution Degree 3
Buy the Traco Power TMDC062413 – Reliable Industrial DC-DC Converter for Industrial Applications
Purchase the Traco Power TMDC 06 series online today—highly reliable, compact 6-watt industrial DC/DC converters with ultra-wide input, high efficiency, and EMC filters. These modules feature a fully encapsulated design, 3000 VDC isolation, and operate reliably from –40°C to +80°C without derating. Perfect for industrial automation, control systems, and harsh environments, they include remote On/Off, overload protection, and meet UL and IEC safety standards. Upgrade your equipment with this robust power solution, ensuring long-lasting performance and operational reliability in demanding conditions.
Get Traco Power TMDC 06 series today—designed for rugged industrial environments with high EMC immunity and excellent isolation.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC062413?
You can click on the BUY or RFQ button to purchase TMDC062413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC062413?
You can download the TMDC062413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC062413?
TRACO POWER
