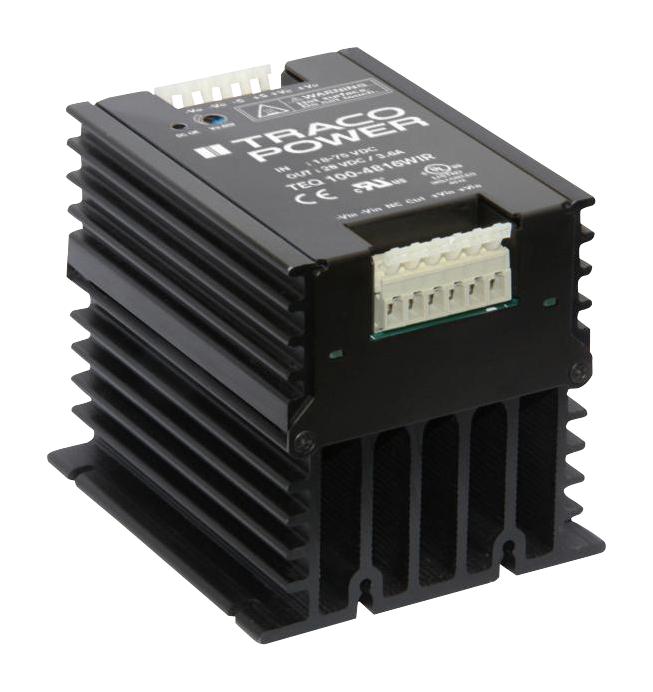

TRACO POWER TEQ1007212WIR High-Performance Industrial DC/DC Converter
The TEQ 100WIR series from TracoPower offers high-performance, isolated DC/DC converters rated at 100W. These rugged, sealed aluminum modules are suitable for industrial and railway applications, featuring an ultra-wide 4:1 input voltage range, reverse input protection, and excellent efficiency up to 90%. They include output voltage trimming, remote On/Off, undervoltage lockout, soft-start, and overcurrent protection. Designed for operating temperatures from -40°C to +105°C, this series provides reliable power solutions for battery systems and challenging environments, certified under IEC/EN 60950-1, UL, and CE standards, with output voltages of 12V, 24V, 28V, or 48V DC.
TRACO POWER TEQ1007212WIR High-Performance Industrial DC/DC Converter Specifications:
- Casing material: aluminium
- Potting material: silicone (UL94V-0 rated)
- Weight: 800 g
- Input voltage: 12V, 24V, 48V, 110V DC variants with ultra-wide 4:1 range
- Input current at no load: 25mA (24V), 20mA (48V), 10mA (110V)
- Start-up voltage: 10.0 VDC (12V), 19.0 VDC (24V), 43.0 VDC (110V)
- Output voltages: 12V, 24V, 28V, 48V DC
- Max output current: 8.4A (12V), 4.2A (24V), 3.6A (28V), 2.1A (48V)
- Efficiency: up to 90%
- Isolation voltage: 2250 VDC (I/O), 1600 VDC (input to case)
- Operating temperature: -40°C to +105°C, full load up to +85°C
- Ripple and noise: 125-350 mVp-p depending on output voltage
- Dimensions: 103.2 mm x 74.2 mm x 87.6 mm
- Switching frequency: 250 kHz (24V/48V), 300 kHz (110V)
- Certifications: IEC/EN 60950-1, UL 508, CSA C22.2, UL 60950-1, EN 50155, EN 55022 Class A
- Safety and EMC compliance: various standards including railway immunity EN 50155
Buy the TracoPower Series DC DC Converter: TEQ 100WIR: TEQ1007212WIR
Experience reliable power with the TracoPower TEQ 100WIR series. These rugged, sealed high-efficiency converters operate from -40°C to +105°C without derating, suitable for industrial and railway applications. Featuring ultra-wide input voltage ranges, excellent thermal management, and comprehensive certifications, they ensure safety, EMC compliance, and long-term durability. Perfect for battery-powered systems and demanding environments, these converters offer output voltages of 12V, 24V, 28V, and 48V, with high efficiency up to 90%, making them ideal for industrial automation, transport, and control systems. Order online today for dependable power solutions.
Get TracoPower TEQ 100WIR today—built for industrial robustness and high efficiency performance.
