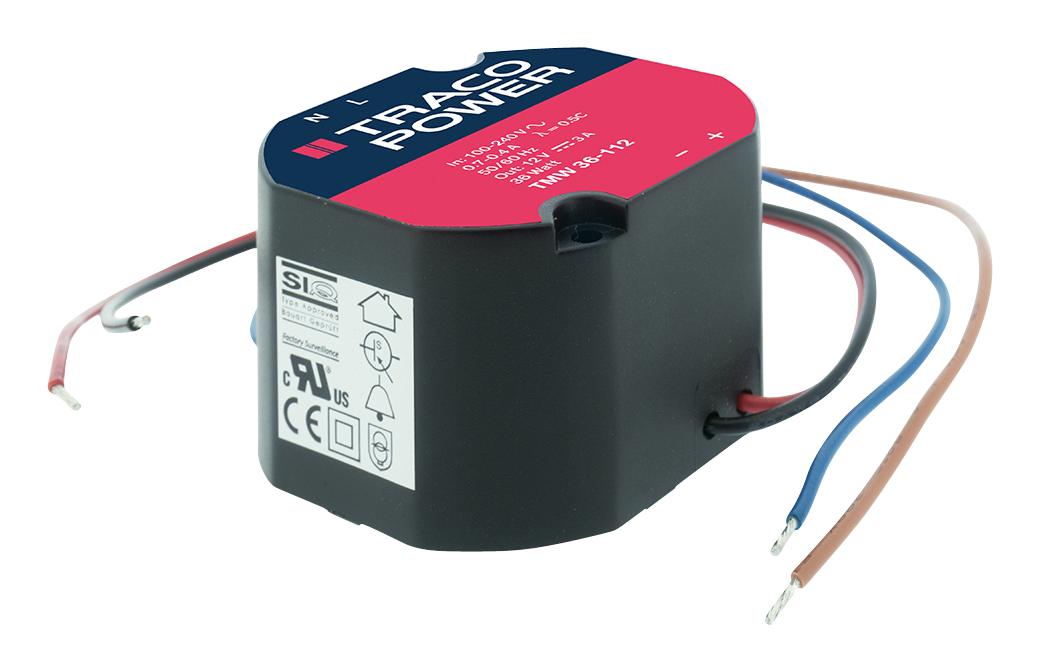

TRACO POWER TMW36112 Medical Power Supply

The TMW 36 series consists of fully encapsulated AC/DC power supplies suitable for medical, household, and industrial applications. Each model features a compact, dust-resistant, and waterproof IP68-rated housing, ensuring durability and protection. They comply with IEC/EN 62368-1, IEC/EN 60335-1, and IEC/EN 60601-1 3rd edition standards, and are certified for 2xMOPP safety isolation. The power supplies are designed with reinforced isolation, making them suitable for protection class II applications. They operate within a temperature range of -20°C to +80°C and can be mounted in wall outlet boxes with flying leads, or screw-mounted on wood or within furniture. The units include safety features such as 4000VAC reinforced I/O isolation, short-circuit protection, overvoltage protection, and overtemperature protection. They come with a 5-year warranty.

Authorized Distributors
Source:Newark
Part No:TMW 36-112
Stock:26
Inv Date:05-30-2026
Price: Unit price: $61.98
Buy/RFQ:
Source:DigiKey
Part No:TMW 36-112
Stock:10
Inv Date:05-30-2026
Price: Unit price: $49.28
Buy/RFQ:
Part No:TMW 36-112
Stock:8
Inv Date:05-31-2026
Price: Unit price: $52.49
Buy/RFQ:
Part No:TMW 36-112
Stock:0
Inv Date:05-30-2026
Price: Unit price: $49.46
Buy/RFQ:

TRACO POWER TMW36112 Medical Power Supply Specifications:

  • Input Voltage: 85 - 264 VAC (Full Range)
  • Input Frequency: 47-63 Hz
  • Power Consumption at no load: 200 mW max.
  • Inrush Current at 230 VAC: 50 A max.
  • Efficiency: up to 87%
  • Output Voltage: 12 VDC or 24 VDC
  • Output Current: 3A for 12V, 1.5A for 24V
  • Ripple and Noise: 140 mVp-p max.
  • Isolation Voltage: 4000 VAC (reinforced)
  • Protection: Short-circuit, Overvoltage, Overtemperature
  • Temperature Range: -20°C to +80°C
  • Safety Certifications: IEC/EN 62368-1, IEC/EN 60335-1, IEC/EN 60601-1
  • Housing: IP68, Encapsulated, Dust Resistant, Waterproof
  • Dimensions: around 200mm x 88.5mm x 30mm
  • Mounting Options: Wall outlet, screw mounting on furniture
  • Warranty: 5 years

Buy the Traco Power Series TMW 36 Medical Power Supply: TMW36112

Secure your applications with the Traco Power TMW 36 Series power supply. Compact and IP68-rated, it offers reinforced safety isolation, operating from -20°C to +80°C. Certified safety standards and integrated protections ensure optimal performance and durability in medical, industrial, and household use. With a five-year warranty, this reliable power supply guarantees continuous operation, making it an ideal choice for demanding environments requiring safety and robustness. Purchase online today and ensure your systems are powered with excellence.

Buy Traco Power TMW 36 Series TMW36112 now and experience unmatched reliability and performance in demanding medical and industrial environments.

Frequently Asked Questions

Where can I buy TRACO POWER TMW36112?

You can click on the BUY or RFQ button to purchase TMW36112 from an authorized TRACO POWER distributor.

How do I troubleshoot issues or seek technical support for part TMW36112?

You can download the TMW36112 datasheet or visit the TRACO POWER website for support.

Who is the manufacturer of TMW36112?

TRACO POWER
