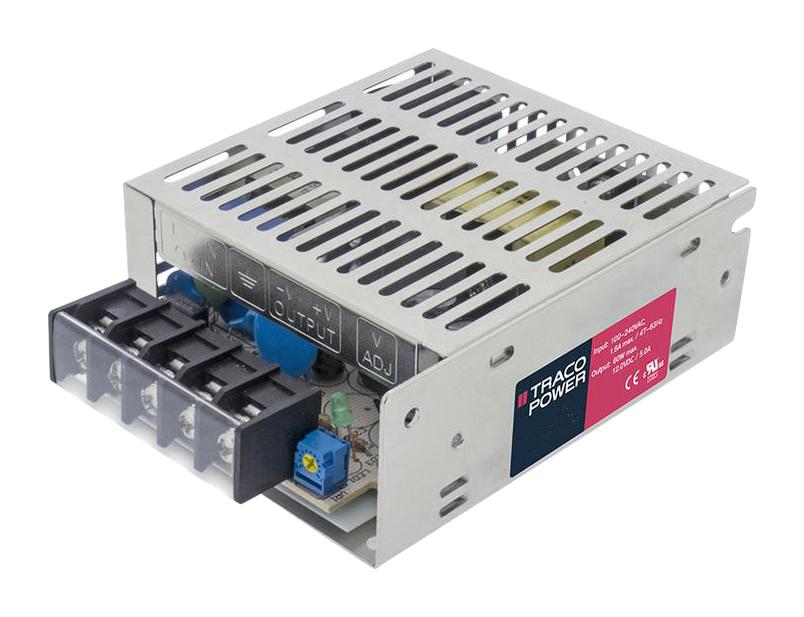

TRACO POWER TXLN060115 Power Supply
The TXLN 060 series is a family of compact, encased power supplies designed for cost-sensitive applications. Featuring a low-profile metal enclosure and screw terminal connections, these power supplies are easy to install in various equipment. They offer universal input voltage (88-264VAC), high efficiency up to 83%, and are convection cooled without fans. The units comply with European EMC standards, the Low Voltage Directive (LVD), and safety certifications such as IEC/EN/UL 62368-1. They include protections against short circuits, overvoltage, and overload, and are built with a protective class I (connection to PE). The operating temperature ranges from -20°C to +70°C, with a switching frequency between 58kHz and 72kHz (PWM). Features also include aluminium housing, pollution degree PD 2, overvoltage category OVC II, and a 3-year warranty.
TRACO POWER TXLN060115 Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC (designed for, no certification)
- Input Frequency: 50-63 Hz
- Output Power: 60 W
- Output Voltage: adjustable 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V
- Output Current: up to 12 A depending on model
- Efficiency: up to 86%
- Ripple and Noise: max. 200 mVp-p
- Protection: short circuit, overvoltage, overload
- Operating Temperature: -20°C to +70°C
- Cooling: natural convection
- Isolation Voltage: input to output 3,600 VAC, input to case 1,500 VAC
- Certifications: IEC/EN/UL 62368-1, EN 61000-6-3, EN 61000-6-1, pollution degree PD 2
- Housing Material: aluminium
- Connection: screw terminal
- Weight: 340 g
- Switching Frequency: approximately 65 kHz
Buy the Traco Power TXLN060 Series – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TXLN 060 series power supply online today and ensure your industrial systems operate seamlessly with high efficiency and safety compliance. This compact, easy-to-install unit offers universal input, protected features including short circuit, overvoltage, and overload protections, and a robust aluminium housing. With a convenience of screw terminal connections and certifications for safety standards such as IEC/EN/UL 62368-1, this power supply guarantees reliable performance in cost-critical applications. Order now to enhance your equipment’s stability and compliance effortlessly.
Buy Traco Power TXLN060 series power supply now and experience unmatched reliability, safety, and efficiency for your industrial equipment.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN060115?
You can click on the BUY or RFQ button to purchase TXLN060115 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN060115?
You can download the TXLN060115 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN060115?
TRACO POWER
