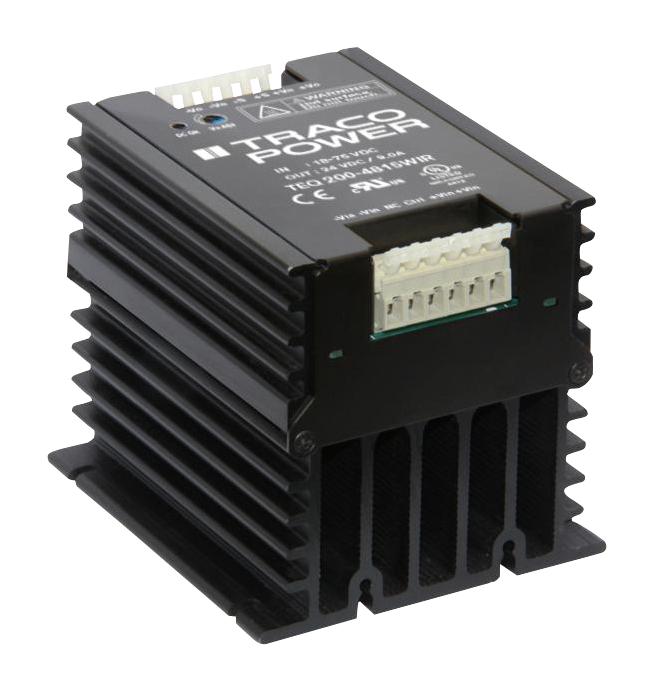

TRACO POWER TEQ2004812WIR Industrial DC/DC Converter
The TEQ 200WIR series from Tracopower comprises high-performance, 200W isolated DC/DC converters in rugged sealed metal enclosures. Engineered for industrial and railway applications, these modules feature ultra-wide 4:1 input voltage ranges, reverse input protection, and certification compliance with IEC/EN 60950-1, UL 508, and EN 50155. They support output voltages from 12VDC to 48VDC, with currents up to 20A, operating efficiently at up to 90% and across temperatures from -40°C to 105°C. Their design includes output trimming, remote On/Off, undervoltage lockout, soft start, and short circuit protection, making them ideal for demanding environments requiring reliable and stable power supplies.
TRACO POWER TEQ2004812WIR Industrial DC/DC Converter Specifications:
- Input voltage range: 9.6-13.2V (12V models), 19.2-26.4V (24V models), 22.4-30.8V (28V models), 38.4-52.8V (48V models), 43-160V (high voltage models)
- Max output current: 20A (12V models), 24V models: 90A, 75A, 5A depending on model
- Efficiency: up to 90%
- Operating temperature: -40°C to +105°C, up to +70°C without derating, up to +90°C with derating
- Isolation voltage: 2250 VDC between input and output, 1600 VDC Input to case, 1600 VDC output to case
- Ripple and noise: 125-350 mVp-p depending on model, typical startup time: 75 ms
- Dimensions: approximately 103.2mm x 87.6mm x 45mm, weight: 800g
- Standards: IEC/EN 60950-1, UL 508, CSA C22.2, EN 50155, RoHS compliant
- Features: output voltage trimming, remote On/Off, undervoltage lockout, overvoltage, short-circuit protection, thermal protection
Buy the Tracopower Series TEQDC DC/DC Converter: TEQ2004812WIR
Experience dependable power solutions with the Tracopower TEQ2004812WIR. Designed for industrial and railway use, this 200W isolated DC/DC converter offers ultra-wide input voltage, high efficiency, and multiple safety features. Its rugged metal case ensures durability and reliable thermal performance, even in harsh environments. With adjustable output, remote On/Off, and full compliance with international safety standards, the TEQ2004812WIR is ideal for demanding applications requiring stable, efficient power conversion. Buy online today for seamless integration into your system.
Get Tracopower TEQ2004812WIR today—built for robust industrial power conversion and reliable operation in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ2004812WIR?
You can click on the BUY or RFQ button to purchase TEQ2004812WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ2004812WIR?
You can download the TEQ2004812WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ2004812WIR?
TRACO POWER
