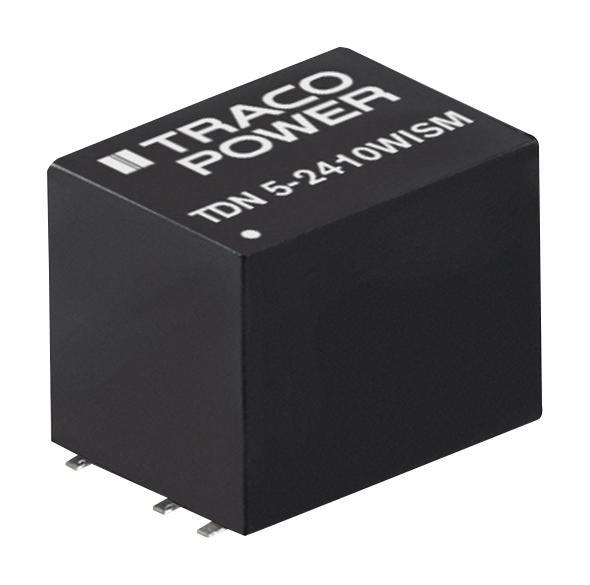

TRACO POWER TDN52410WISM DC-DC Converter
The TDN 5WISM Series is a high-performance, ultra-compact 5 Watt DC/DC converter designed for space-limited applications, featuring fully regulated outputs, 1600 VDC isolation, and remote On/Off control. Ideal for industrial and electronic systems, it operates from a wide input voltage range (4:1) with minimal load required. Its robust design meets safety standards such as UL 62368-1 and IEC/EN 62368-1, providing reliability with short circuit protection, low ripple, and high efficiency, suitable for operation from -40°C to +75°C with derating above 50°C.
TRACO POWER TDN52410WISM DC-DC Converter Specifications:
- Input Voltage Range: wide (4:1), models vary from 3.3 VDC to 48 VDC
- Output Power: 5 Watts
- Output Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, +5V/500mA, +12V/210mA, +15V/168mA, etc.
- Isolation Voltage: 1600 VDC
- Operating Temperature: -40°C to +75°C, derating above 50°C at 1.8%/K
- Efficiency: up to 84%
- Ripple and Noise: 50-75 mVp-p (20 MHz bandwidth)
- Short Circuit Protection: continuous, automatic recovery
- Start-up Time: 10-20 ms
- Dimensions: approximately 13.2 x 9.1 x 10.2 mm
- Protection: Remote On/Off, input surge 15-100 Vmax, reflected ripple current 15-40 mA
- Standards: UL 62368-1, IEC/EN 62368-1, RoHS compliant
- Isolation Resistance: >1 GΩ at 500 VDC
- Reliability: MTBF approx. 2,280,000 hours
- Case Material: Non-conductive plastic, potting with UL 94/0 rated silicone
Buy the Traco Power Series TDN 5WISM DC-DC Converter: TDN52410WISM
Purchase the Traco Power TDN52410WISM Series 5 Watt DC-DC converter online today for reliable, high-efficiency power conversion in compact designs. Featuring a broad input voltage range, high isolation voltage of 1600 VDC, and fully regulated outputs, this converter ensures stable performance in demanding environments. Its small form factor allows easy integration into tight spaces, while short circuit protection and remote On/Off enhance safety and usability. Perfect for industrial, automation, and electronic applications, the TDN52410WISM guarantees durability and compliance with safety standards. Buy now to ensure your system meets high-performance requirements with ease.
Get Traco Power TDN52410WISM today—built for precision, reliability, and space-saving performance in industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TDN52410WISM?
You can click on the BUY or RFQ button to purchase TDN52410WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDN52410WISM?
You can download the TDN52410WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDN52410WISM?
TRACO POWER
