TRACO POWER TEQMK1 High Power DC/DC Converter
The TEQ 100WIR Series comprises rugged, high-performance DC/DC converters delivering 100 watts with ultra-wide input voltage ranges from 9.6V to 160V. Designed for industrial, railway, and battery-operated applications, these sealed metal case modules feature efficiency up to 90%, excellent thermal performance, and operate across -40°C to +85°C without derating. They include comprehensive protections such as UV lockout, overvoltage, short circuit, and reverse polarity, along with remote on/off and output voltage trimming. Certified with EN 50155 and IEC standards, they ensure reliable power conversion for demanding environments.
TRACO POWER TEQMK1 High Power DC/DC Converter Specifications:
- Input voltage range: 9.6V to 160V DC
- Output power: 100 Watts
- Operating temperature: -40°C to +85°C without derating, up to +95°C with derating
- Efficiency: up to 90%
- Isolation voltage: 2250 VDC Input/Output, 1600 VDC Input/Case
- Dimensions: approximately 103.2mm x 74.2mm x varies by model
- Casing: Aluminum with silicone potting, sealed metal enclosure
- Ripple and noise: 250 mVp-p (24/28V models), 350 mVp-p (48V models)
- Protection: UV lockout, overvoltage, short circuit, reverse polarity
- EMC compliance: EN 55032 class A, EN 50155, IEC 61000-4-2/3/4/5/6
- Remote On/Off: positive or negative logic options
- Switching frequency: 250 - 300 kHz depending on model
- Weight: approximately 800 grams

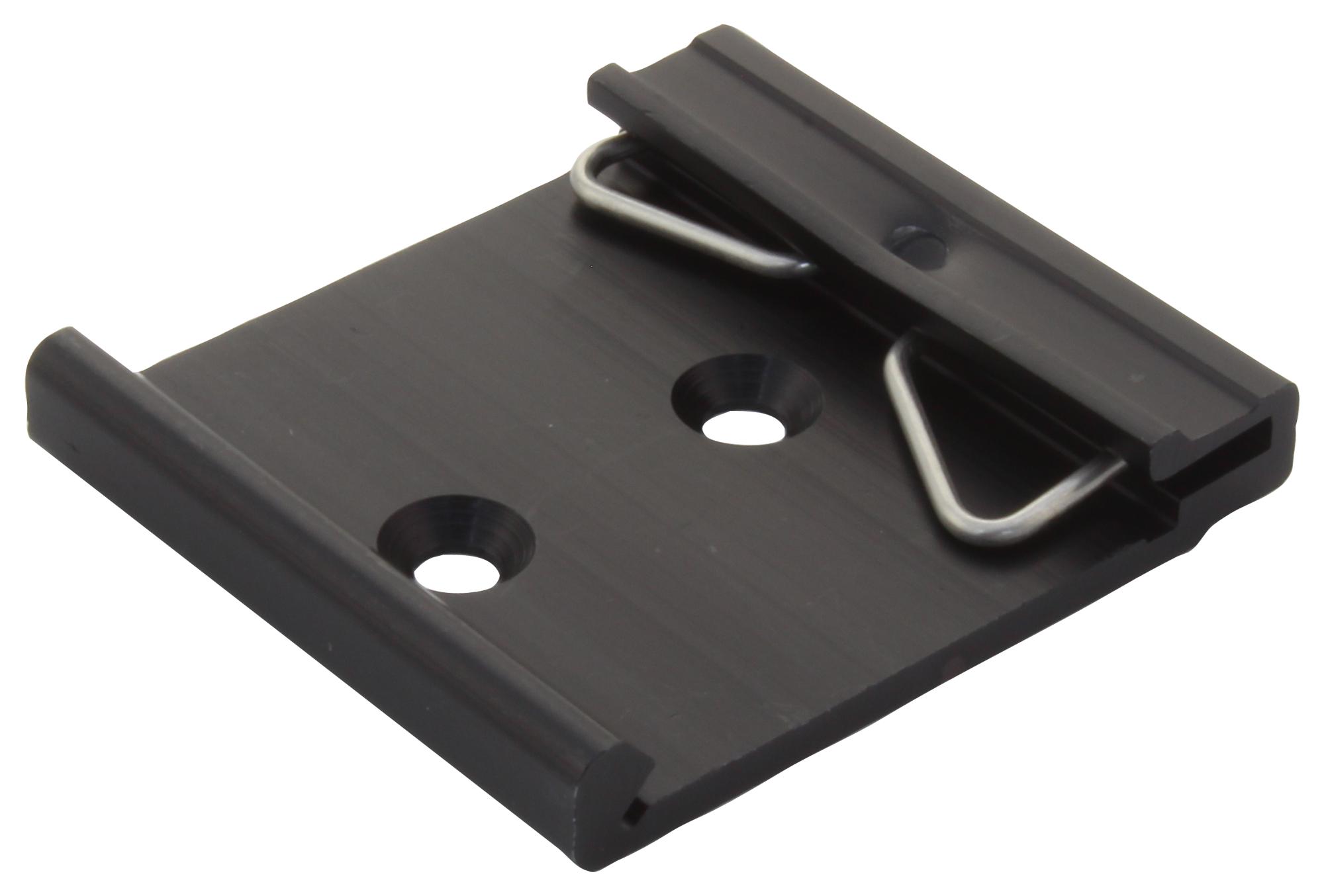

Buy the Buy TracoPower TEQ 100WIR Series Part Number TEQMK1 Online
Purchase the TracoPower TEQ 100WIR Series online today to ensure your industrial or railway power systems operate with high efficiency, durability, and safety. These rugged modules offer ultra-wide input ranges, exceptional thermal performance, and comprehensive protections, making them ideal for demanding environments. With easy remote control, precise voltage trimming, and certifications like EN 50155, order now to enhance your power conversion solutions with proven reliability and top-tier quality from TracoPower.
Buy TracoPower TEQ 100WIR Series module now and enjoy reliable, efficient power with extensive protections suitable for industrial and railway systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEQMK1?
You can click on the BUY or RFQ button to purchase TEQMK1 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQMK1?
You can download the TEQMK1 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQMK1?
TRACO POWER
