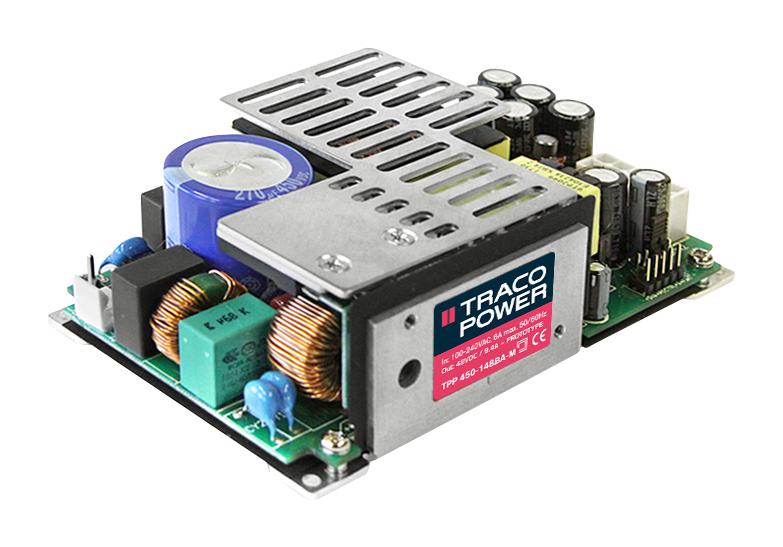

TRACO POWER TPP450112BAM Medical Power Supply
The TPP 450BA-M Series is a high-efficiency, 450 Watt medical power supply designed for demanding healthcare applications. It features reinforced double 1/0 isolation in accordance with IEC/EN/ES 60601-1 3rd edition for 2 x MOPP safety compliance, making it suitable for BF applications. The power supply operates with natural convection cooling up to 320 W at 50°C, bestowing silent operation and hygienic conditions without fans. It comes with multiple output voltages, remote On/Off, and a wide input voltage range of 85-264 VAC and 120-370 VDC, ensuring reliable operation in various medical environments.
TRACO POWER TPP450112BAM Medical Power Supply Specifications:
- Input Voltage: 85 - 264 VAC / 120 - 370 VDC
- Input Frequency: 50/60 Hz
- Input Current: 2,400 mA max at full load
- Power Consumption: 500 mW max at no load
- Output Power: 450 W
- Output Voltage Range: 11.0-13.0 V, 13.8-16.2 V, 22.1-25.9 V, 25.8-30.2 V, 33.1-38.9 V, 44.2-51.8 V, 48-57.2 V
- Maximum Output Current: 37.5A, 30A, 18.75A, 16.1A, 12.5A, 9.4A, 8.55A respectively
- Efficiency: Up to 94%
- Cooling: Natural convection up to 320 W at 50°C, forced air cooling available
- Isolation: Reinforced double 1/0 in accordance with IEC/EN/ES 60601-1
- Leakage Current: <100 pA at 264 VAC
- Environmental Temperature Range: -40°C to +85°C
- Altitude: Up to 5000 m
- Protection class: II (Reinforced Insulation)
- Safety Standards: IEC 60601-1, IEC 62368-1, UL 62368-1, EN 45545-2
- EMC Compliance: IEC 60601-1-2 Ed. 4, FCC Part 15/18 class B/a, EN 61000-3-2/3/4
- Dimensions: 3" x 5" (76.2 mm x 127 mm), weight approximately 462 g
- Features: Remote On/Off, standby 5 V/2 A, variable fan speed, high thermal reliability
Buy the Traco Power TPP450-112BA-M – Reliable Medical Power Supply for Industrial Applications
Purchase the Traco Power TPP450-112BA-M online today to benefit from high efficiency, reinforced medical safety standards, and versatile power outputs. This 450 Watt power supply is designed specifically for demanding medical applications, offering excellent thermal management with natural convection cooling up to 320 W at 50°C, and forced air cooling if needed. It conforms to IEC 60601-1 standards for 2 x MOPP safety, making it suitable for BF applications. Its compact design, wide input voltage range, and reliable operation ensure seamless integration into medical equipment, delivering dependable power with minimal noise and maximum safety.
Order your Traco Power TPP450-112BA-M medical power supply today and ensure your healthcare devices operate reliably with high efficiency and safety.
