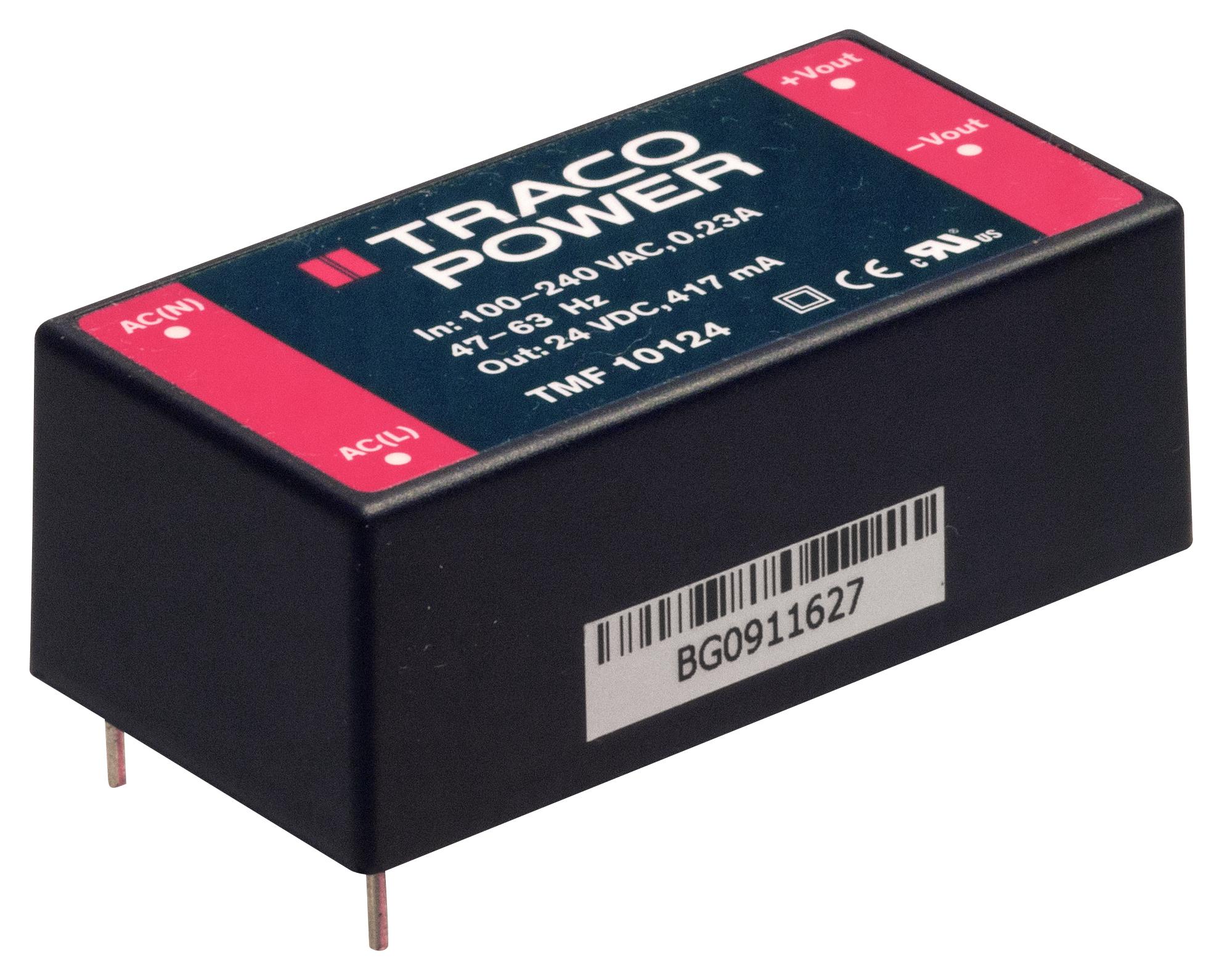

TRACO POWER TMF10105 Medical Power Module
The TMF Series AC/DC power modules from Traco Power provide fully encapsulated, PCB-mountable solutions designed for medical applications, supporting a wide 90-264 VAC input, and offering power options from 5W to 30W. They feature excellent efficiency up to 88%, extensive safety certification including IEC 60601-1, low leakage current less than 100 pA, and operate reliably in temperatures from -25°C to +70°C. These compact, lightweight modules are protected against short circuits, overload, and overvoltage, making them ideal for stationary and transportable medical equipment with high safety and performance standards.
TRACO POWER TMF10105 Medical Power Module Specifications:
- Input voltage: 90 - 264 VAC, 47 - 63 Hz
- Output power options: 5W to 30W
- Output voltage: 5.0 VDC to 24 VDC
- Output current: 1000 mA to 2500 mA
- Efficiency: Up to 88%
- Operating temperature: -25°C to +70°C
- Leakage current: <100 pA
- Protection: Short-circuit, overload, overvoltage (zener diode)
- Isolation: 4000 VAC
- Enclosure: Fully encapsulated plastic casing (UL94V-0 rated)
- Compliance: IEC 60601-1, ISO 14971, IEC/EN/ES 60601-1
- Humidity: 95% relative, non-condensing
- Altitude: Up to 5000 meters
- Cooling: Natural convection
- MTBF: > 450,000 hours
- Switching frequency: 40-140 kHz
Buy the Traco Power Series Medical Power Module: TMF10105
Enhance your medical equipment with the reliable TMF10105 power module from Traco Power. Offering 10W power output, low leakage current, and full IEC 60601-1 certification, it ensures optimal safety and efficiency. Compact and lightweight, it operates reliably in temperatures from -25°C to +70°C, making it perfect for stationary and transportable medical devices. Its high efficiency up to 88%, natural convection cooling, and comprehensive safety features enable seamless integration into your medical solutions, ensuring durability and compliance with global safety standards.
Buy Traco Power TMF10105 medical power module now and experience unmatched reliability and performance for healthcare devices with safety assurance.
Frequently Asked Questions
Where can I buy TRACO POWER TMF10105?
You can click on the BUY or RFQ button to purchase TMF10105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMF10105?
You can download the TMF10105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMF10105?
TRACO POWER
