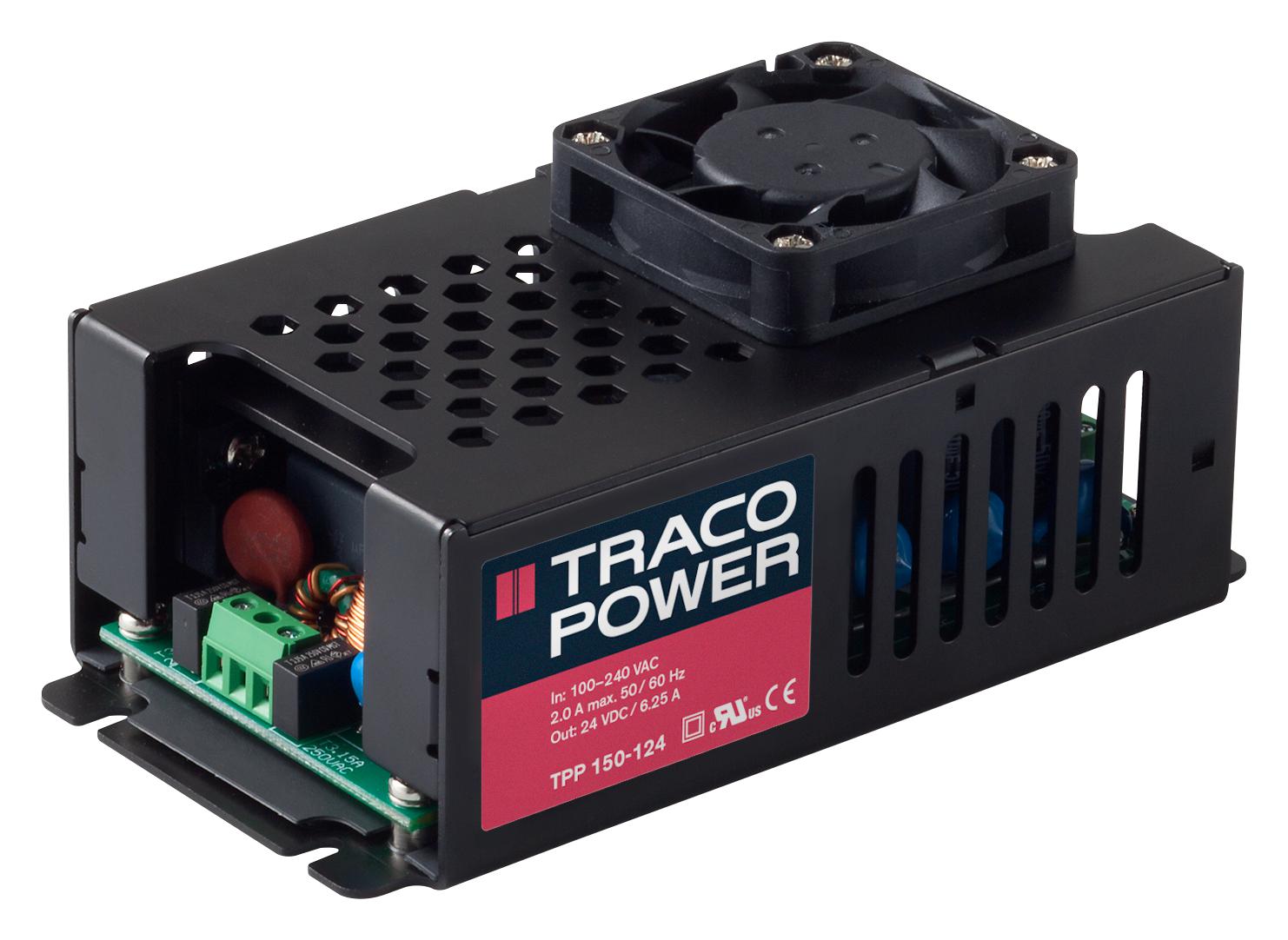

TRACO POWER TPP150124 Medical Power Supply
The TPP 150 series by Traco Power is a 150-watt medical power supply designed for reliable performance in medical devices and safety-critical applications. It complies with IEC 60601-1 3rd edition standards with 2 x MOPP and features reinforced double 1/0 isolation, low leakage current below 100 pA, and high efficiency up to 92%. Its compact 2.44” x 4.6” enclosure supports operating temperatures from 25°C to 70°C, with derating up to 80°C at 40% load. Suitable for BF applications, it offers active power factor correction (>0.95), robust EMC compliance, and a 5-year warranty, making it ideal for hospital and industrial use.
TRACO POWER TPP150124 Medical Power Supply Specifications:
- Output Voltage: 24 VDC (21.6 - 26.4 VDC)
- Output Current: 6,250 mA
- Input Voltage: 85 - 264 VAC / 120 - 370 VDC
- Input Frequency: 47 - 63 Hz
- Efficiency: Up to 92%
- Power Consumption (No Load): 1000 mW max.
- Protection Class: Class | and II
- Isolation Test Voltage: 5,000 VAC (input to output), 2,828 VAC (input to case), 2,828 VAC (output to case)
- Leakage Current: <100 pA
- Thermal Range: 25°C to 70°C (derates to 80°C at 40% load)
- Dimensions: 2.44 x 4.6 inches
- Enclosure: Aluminum alloy, black anodized
- Operating Altitude: Up to 5000 m
- Cooling: Internal fan with variable speed, 12 VDC, 500 mA max.
- Compliance: IEC 60601-1, UL 60950-1, EN 60601-1, AAMI ES 60601-1
- Protection: Short circuit, overvoltage (115-135%), thermal, automatic recovery
- EMC: Compliant with EN 60601-1-2 edition 4, FCC Part 15/18 B/A, EN 55011/32, EN 61000-3-2/3
- Environmental: RH max 95%, -25°C to +80°C operating, storage -40°C to +75°C
- Isolation Resistance: >7100 MΩ at 500 VAC
- Housing Material: Aluminum alloy, black anodized
- Weight: 273 g
Buy the Traco Power Series TPP150124 24V Power Supply: TPP 150 Series 24VDC
Purchase the Traco Power Series TPP150124 24VDC medical power supply online today and enjoy robust performance, reinforced safety standards, and high efficiency. Perfect for demanding medical devices and safety-critical industrial applications, it features low leakage current, reinforced insulation, and a compact, durable aluminum housing. Benefit from a 5-year warranty, automatic short circuit protection, and compliance with IEC 60601-1, UL, and EN standards. Secure your reliable power solution now for optimal device performance in hospital or industrial environments.
Order your Traco Power Series TPP150124 24VDC power supply today and ensure reliable, medical-grade performance for your critical applications.
Frequently Asked Questions
Where can I buy TRACO POWER TPP150124?
You can click on the BUY or RFQ button to purchase TPP150124 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP150124?
You can download the TPP150124 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP150124?
TRACO POWER
