TRACO POWER TMT50124C Power Supply Module
The TMT series power modules provide compact, fully encapsulated AC/DC power supply solutions with universal input voltage of 85-264VAC, suitable for industrial, medical, and control applications. These models feature various single, dual, and triple outputs with screw terminal and solder pin options, offering high efficiency, protection features, and compliance with safety standards like UL 60950-1 and IEC 60601-1. Designed for reliable performance in space-critical applications, they include overload protection, EMI compliance, and a 3-year warranty, making them ideal for industrial control and electronic equipment.
TRACO POWER TMT50124C Power Supply Module Specifications:
- Input Voltage: 85-264 VAC, 85-370 VDC, 47-63 Hz
- Output Power Range: 5 to 50 Watts
- Output Voltage Configurations: 3.3V, 5V, 12V, 15V, 24V, 48V, -12V, -15V, -Vout, +Vout
- Protection Class: II
- Efficiency: 83% typ.
- Isolation Voltage: 4000 VAC (Input/Output)
- Operating Temperature: 25°C to +50°C, derating 5%/K above +40°C
- Humidity: 85% non-condensing
- Dimensions: Ranging from approximately 66mm to 129mm in length depending on model
- Weight: From 52g to 295g depending on model
- Certification: UL 60950-1, IEC 60601-1, UL 508, EN 55022 B, FCC Part 15 B
- MTBF: >1.8 million hours at +25°C
- Rating: Fully encapsulated, UL and RoHS compliant, medical safety standard compliant for some models
- Switching Frequency: 100 kHz typical
- EMC & Immunity: EN 55022 B, IEC/EN 60601-1-2
- Protection: Short circuit, overload, EMI compliance, Class II protection

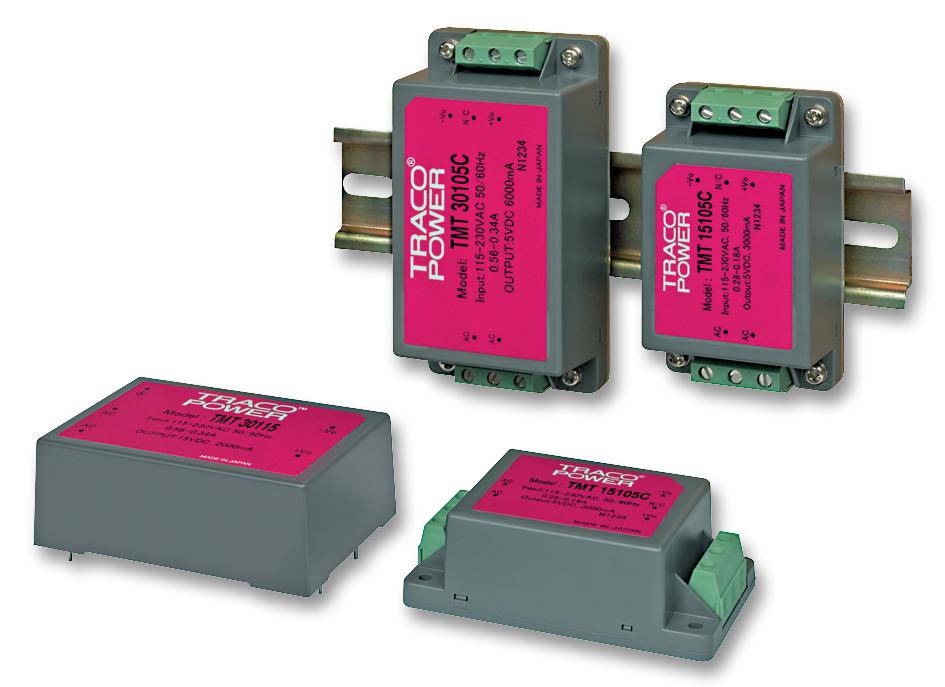

Buy the TracoSeries TMT Power: 50 Watt Power Supply Module
Enhance your electronic projects with the Traco TMT50124C power supply module, offering reliable performance, compact design, and safety standards compliance. Its 24V output and high efficiency make it ideal for industrial, medical, and control equipment requiring space-saving power solutions. Easy installation options include screw terminals and solder pins, supported by extensive safety features like overload and short circuit protection. Trust Traco for durable, high-quality switching power modules that meet global safety and EMC standards. Buy online today to ensure reliable power delivery in your critical applications!
Get Traco TMT50124C today—built for precision, efficiency, and long-lasting durability in critical electronic applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMT50124C?
You can click on the BUY or RFQ button to purchase TMT50124C from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMT50124C?
You can download the TMT50124C datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMT50124C?
TRACO POWER
