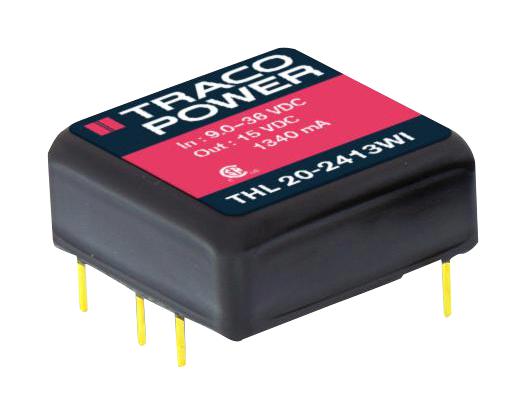

TRACO POWER THL204822WI DC/DC Converter
The THL 20WI series from TracoPower are compact 20W single- and dual-output DC/DC converters designed for high power density applications. They feature a durable metal enclosure with dimensions of 1.0 inches by 1.0 inches by 0.4 inches (W x D x H). These converters offer an ultra-wide input voltage range of 4:1, making them suitable for various power sources, and provide precisely regulated output voltages including 3.3V, 5V, 12V, 15V, 24V, and dual outputs of ±12V and ±15V. They can deliver up to 4.5A depending on the model. The converters are engineered with high efficiency up to 90%, ensuring reliable operation even in temperature ranges from -40°C up to +75°C, or up to +85°C with a heat sink. All models incorporate features such as output current limiting, automatic recovery from short circuits, remote on/off control, and are compliant with safety standards including UL/cUL 60950-1 and IEC/EN 60950-1. They also provide excellent isolation with 1500VDC I/O isolation voltage and resistance greater than 1000 MΩ. The design includes a shielded metal case with a baseplate, suitable for use in space-constrained environments like mobile equipment, instrumentation, communication, and industrial electronics. Typical ripple and noise levels range from 70mVp-p to 150mVp-p depending on the output voltage. The devices operate at a fixed PWM switching frequency of approximately 330 kHz, ensuring stable performance, backed by a 3-year warranty.
TRACO POWER THL204822WI DC/DC Converter Specifications:
- Dimensions: 1.0 x 1.0 x 0.4 inches (W x D x H)
- Input voltage range: 4:1 wide, up to 50 V max. surge
- Output voltages: 3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V
- Output current: up to 4.5A (depending on model)
- Efficiency: up to 90%
- Isolation voltage: 1500 VDC (Input/Output)
- Maximum case temperature: +105°C
- Operating temperature: -40°C to +75°C, up to +85°C with heat sink
- Ripple & Noise: 70-150 mVp-p depending on output
- Switching frequency: approximately 330 kHz
- Safety standards: UL/cUL 60950-1, IEC/EN 60950-1
- Remote On/Off control: Yes
- Protection: Short circuit, overload, automatic recovery
- Isolation resistance: >1000 MΩ
- Weight: 15 g
Buy the TracoPower THL-20WI – Reliable DC-DC Converter for Industrial Applications
Purchase the TracoPower THL 20-4822WI DC/DC converter now to experience high reliability in space-constrained environments. With 20W power, input ranges from 4:1, efficiency up to 90%, adjustable output, and safety certifications, it’s ideal for industrial, communication, and instrumentation applications. The robust design includes excellent isolation and short circuit protection, ensuring dependable operation. Benefit from a 3-year warranty, proven performance, and seamless online ordering. Get your reliable power solution today for demanding electronic systems requiring compact, efficient conversion.
Order your TracoPower THL 20-4822WI DC/DC converter today and ensure your industrial projects perform with high efficiency and robust safety features.
