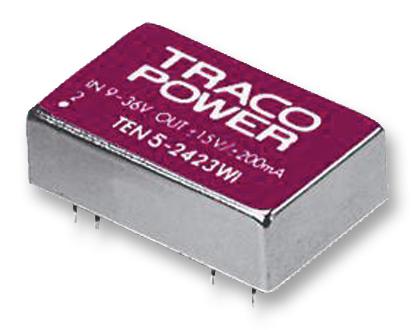

TRACO POWER TEN52412WI DC/DC Converter Modules
The POWER TEN 5WI Series are high-performance, 6 Watt DC/DC converter modules featuring ultra-wide input voltage ranges from 9 to 36 VDC or 18 to 75 VDC. Housed in a shielded DIP-24 metal package, these converters support operating temperatures from -40°C to +85°C, with high efficiency, over-voltage, short-circuit, and reverse voltage protections. Suitable for battery-powered, communication, instrumentation, and industrial electronics, they ensure reliable power conversion with excellent line and load regulation, high isolation, and compliance with safety and EMC standards, offering durable performance in demanding environments.
TRACO POWER TEN52412WI DC/DC Converter Modules Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 6 Watts
- Efficiency: Up to 83%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 18-75 V dual output
- Load Current Max: 500 mA to 1200 mA depending on model
- Ripple and Noise: 80 mVpk-pk at 20 MHz bandwidth
- Humidity: 95% RH non-condensing
- MTBF: >800,000 hours
- Safety Certifications: UL, cUL, IEC/EN 60950-1, CSA
- Dimensions: 22.5 x 15.5 x 9 mm, Weight: 17 g
- Soldering Temperature: Max 260°C for 10 sec
- Switching Frequency: 450 kHz
Buy the Traco Power Series TEN 5WI DC/DC Converter: TEN52412WI
Discover the reliability and versatility of the Traco Power TEN52412WI 6 Watt DC/DC converter. Designed for industrial, communication, and instrumentation applications, it features ultra-wide input voltage ranges of 18 to 75 VDC, high efficiency up to 83%, and full safety compliance. Compact and lightweight at only 17 grams, it offers robust protections including over-voltage, short circuit, and reverse voltage. Ensure stable power delivery in demanding environments with this durable, high-performance power conversion solution available online now with fast shipping and excellent support.
Get Traco Power TEN52412WI today—built for precision and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TEN52412WI?
You can click on the BUY or RFQ button to purchase TEN52412WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN52412WI?
You can download the TEN52412WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN52412WI?
TRACO POWER
