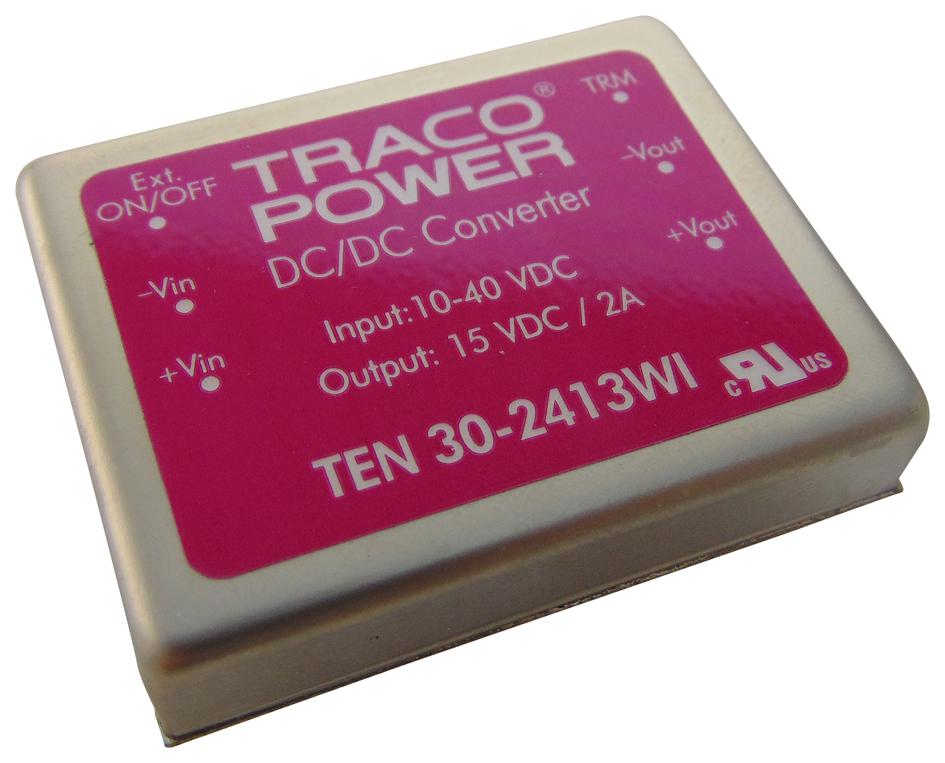

TRACO POWER TEN302413WI DC/DC Converter
The TEN 30WI series offers 30W DC/DC converters featuring an ultra-wide 4:1 input voltage range, compact design, and high efficiency. Suitable for industrial and communication systems, these converters provide galvanic isolation, regulated outputs, and external enable/disable functions. They operate from -40°C to +85°C, include overvoltage and short circuit protection, and have RoHS compliance. With integrated filters, adjustable output voltage, and a robust metal enclosure with insulated baseplate, they ensure reliable performance in space-constrained environments where precise voltage regulation and galvanic separation are essential.
TRACO POWER TEN302413WI DC/DC Converter Specifications:
- Input Voltage Range: 10 VDC to 40 VDC / 18 VDC to 75 VDC
- Output Voltage: 1.8 VDC to 15 VDC / 5 VDC / 12 VDC / 15 VDC options
- Maximum Output Current: 2000 mA to 8000 mA depending on model
- Efficiency: Up to 88%
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 1500 VDC
- Switching Frequency: 300 kHz typical
- Input Transient Surge: 50 V max. (24 V models), 100 V max. (48 V models)
- Protection Features: Overvoltage, short circuit, undervoltage shutdown
- External Enable/Disable: Yes, adjustable via optional pin connection
- Physical Material: Eloxiert aluminum enclosure, copper base plate, UL 94 V-0 epoxy coating
- Dimensions: Approx. 56 mm x 20.4 mm x 10 mm
- Weight: 48 g
- Compliance: UL 60950, IEC/EN 60950, RoHS, Reach
Buy the Traco Power TEN 30WI – Reliable DC/DC Converter for Industrial Applications
Purchase the Traco Power TEN 30WI series 30 Watt DC/DC converters online today for versatile, high-efficiency power conversion solutions. Designed for industrial environments, these converters feature an ultra-wide input range, reliable protection mechanisms, and a compact, rugged metal enclosure suitable for space-constrained applications. Perfect for mobile battery-powered devices, decentralized power supplies, and communication systems, they ensure precise voltage regulation and galvanic isolation. Take advantage of our quick, secure online ordering to integrate dependable power solutions into your projects effortlessly.
Order your Traco Power TEN 30WI series 30 Watt high-efficiency DC/DC converter today and ensure dependable power regulation for your industrial or communication projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEN302413WI?
You can click on the BUY or RFQ button to purchase TEN302413WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN302413WI?
You can download the TEN302413WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN302413WI?
TRACO POWER
