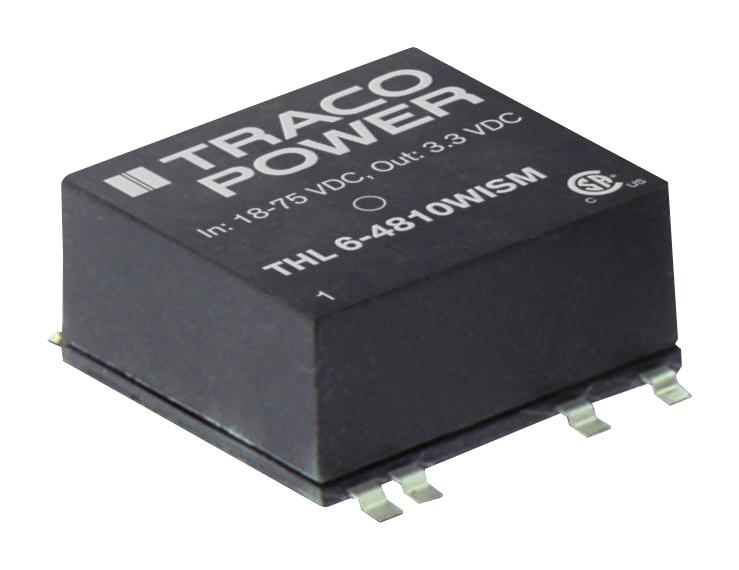

TRACO POWER THL62411WISM DC/DC Converter
The THL 6WISM series from TracoPower features 6W compact DC/DC converters in an SMD package, suitable for various applications including data, telecom, instrumentation, and industrial electronics. These converters provide fully regulated outputs with an ultra-wide 4:1 input voltage range. They include internal filtering that meets EN55022 Class A standards without external components, along with remote on/off control and short circuit protection. The models support input voltages of 24VDC or 48VDC, with selectable output voltages including 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, and ±15V. Maximum output currents range from 200mA to 1450mA, with efficiencies up to 83%. They offer 1500VDC I/O isolation for 60 seconds, low ripple and noise (100mVp-p at 20MHz bandwidth), and comply with safety standards UL/cUL 60950-1 and IEC/EN 60950-1. The dimensions are 20.3mm x 10.5mm x 22mm. Operating temperature range is -40°C to +75°C under natural convection. A 3-year product warranty is included.
TRACO POWER THL62411WISM DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC depending on model
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, ±15V
- Output Current Max: 200mA to 1450mA depending on model
- Efficiency: Up to 83%
- Isolation Voltage: 1500 VDC (input/output for 60 sec.)
- Ripple and Noise: 100 mVp-p (20 MHz bandwidth)
- Operating Temperature: -40°C to +75°C
- Dimensions: 20.3 mm x 10.5 mm x 22 mm
- Switching Frequency: 330 kHz
- Safety Standards: UL 60950-1, IEC 60950-1
- Environmental: RoHS, Reach compliant
- Protection: Short circuit, automatic recovery
- Conducted Noise: EN 55022 Level A
- Isolation Capacitance: 1500 pF
- Weight: 78 g
- Case Material: Non-conductive plastic UL94V-0
- Pin Material: Phosphor bronze
Buy the TracoPower THL62411WISM – Reliable DC/DC Converter for Industrial Applications
Purchase the TracoPower THL62411WISM series DC/DC converter online today. With a compact design, high efficiency up to 83%, and UL IEC safety standards, this converter ensures reliable power for industrial, telecom, and instrumentation applications. Its wide input range of 9-36 VDC or 18-75 VDC and output options of 3.3V, 5V, 12V, 15V, and 24V provide versatility, while features like 1500VDC isolation, low ripple, and short circuit protection ensure optimal performance. Secure your supply today for durable, safe operations.
Order your TracoPower Series THL62411WISM today and give your industrial electronics projects the dependable power supply they deserve.
Frequently Asked Questions
Where can I buy TRACO POWER THL62411WISM?
You can click on the BUY or RFQ button to purchase THL62411WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL62411WISM?
You can download the THL62411WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL62411WISM?
TRACO POWER
