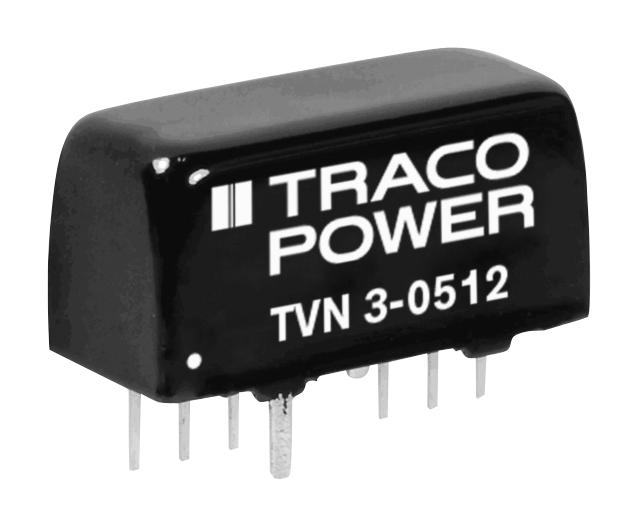

TRACO POWER TVN34811 DC/DC Converter
The TVN 3 Series consists of ultra low ripple and noise 3 Watt DC/DC converters in a compact SIP-8 package. Fully regulated outputs with an input voltage range from 4.5-13.2 VDC, 9-18 VDC, 18-36 VDC, and 36-75 VDC make them suitable for space-limited applications. They feature 1/0 isolation of 1600 VDC, operate reliably up to 75°C full load, with protection against short circuits, and no minimum load requirement. These converters are ideal for industrial and automation applications needing high efficiency and stability in harsh environments.
TRACO POWER TVN34811 DC/DC Converter Specifications:
- Input Voltage Range: 4.5-13.2 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Power: 3 Watts
- Output Voltage: 3.3 VDC, 5.0 VDC, 9.0 VDC, 15 VDC, 24 VDC, 42 VDC, 48 VDC
- Maximum Output Current: 700 mA to 333 mA depending on model
- Efficiency: 74% to 85%
- Isolation Voltage: 1600 VDC
- Operating Temperature Range: -40°C to +90°C, derating above 75°C
- Ripple and Noise: 10 mVp-p (with 10μF capacitor), 15 mVp-p without external components
- Start-up Time: 30 ms
- Short Circuit Protection: Yes, automatic recovery
- Dimensions: Compact SIP-8 package, with specifics typically around 21.8 mm x 10.6 mm
- Weight: Approximately 5.9 g
- Isolation Capacitance: 1500 pF max.
- Input Current No Load: 9 V input 55 mA, 12 V input 30 mA
- Input Surge Voltage: Up to 100 V max.
- Safety Standards: IEC/EN 60950-1, UL 60950-1, RoHS compliant
- Environmental: Operating humidity 5-95%, non-condensing
- Mechanical: Copper case, silicone potting, rated UL 94V-0
- Certifications: IEC/EN 60950-1, UL 60950-1, RoHS
Buy the Traco Power TVN3 – Reliable DC/DC Converter for Industrial Applications
Purchase the Traco Power TVN-series 3 Watt DC/DC converters online today for reliable power regulation in industrial and automation applications. These compact converters offer ultra low ripple, fully regulated outputs, and wide input voltage ranges to fit various design requirements. With 1600 VDC isolation, excellent efficiency, and high-temperature operation, they ensure stable performance even in harsh environments. Their small SIP-8 package makes installation straightforward, while protections like short circuit and no minimum load guarantee durability and safety. Get your power solutions now and keep your systems running smoothly.
Order your Traco Power TVN34811 Series 3 Watt DC/DC Converter today and ensure your industrial projects have dependable power solutions.
