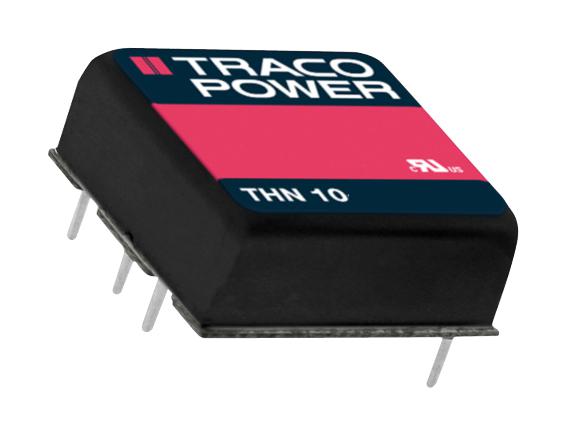

TRACO POWER THN104810WIR railway dc-dc converter
The THN 10WIR series is a set of rugged 10 Watt DC/DC converters designed for reliable performance in harsh environments. They feature a compact 1” x 1” metal package, wide input voltage ranges from 9-36 VDC, 18-75 VDC, and 36-160 VDC, and operate effectively from -40°C to +80°C without derating. These converters include safety approvals like EN 50155 and EN 61373 for railway applications, high efficiency up to 90%, and built-in protections such as overload, overvoltage, short circuit, and remote on/off. They are suitable for transportation, industrial, and automation systems requiring high reliability and safety compliance.
TRACO POWER THN104810WIR railway dc-dc converter Specifications:
- Input Voltage: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 10 Watts
- Output Voltages: 3.3 V, 5 V, 12 V, 15 V, 24 V
- Output Current: 3000 mA, 2000 mA, 830 mA, 670 mA, 420 mA depending on model
- Efficiency: Up to 90%
- Operating Temperature Range: -40°C to +80°C without derating
- Isolation Voltage: 3000 VDC input to output
- Protection: Overload, overvoltage, short circuit
- Remote On/Off: Yes
- Input Surge Voltage: 60V-185V max depending on model
- Switching Frequency: 260-395 kHz
- Dimensions: 1” x 1” x 0.4”
- Housing: Metal, shielded
- Certifications: EN 50155, EN 61373, EN 45545-2, IEC 62368-1, UL 62368-1
- Ripple and Noise: 75 mVp-p
- Pin Material: Copper with Nickel and Tin plating
- Weight: 16.59 g
Buy the Traco Power THN 10WIR – Reliable Railway DC/DC Converter for Industrial Applications
Purchase the Traco Power THN 10WIR railway DC/DC converter online and ensure your industrial and transportation systems operate reliably under harsh conditions. This ruggedized 10-watt power module offers high efficiency up to 90%, wide input voltage ranges, and safety certifications including EN 50155 and EN 61373, making it ideal for railway, industrial, and automation applications. Its compact metal housing and built-in protections provide durability and safety, while the remote on/off and output trim features facilitate seamless integration into your design. Enjoy quick ordering and fast delivery today!
Buy Traco Power THN 10WIR now and experience unmatched reliability, efficiency, and safety in your industrial and railway systems.
