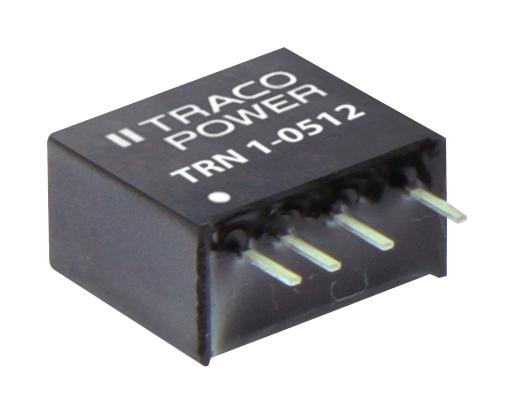

TRACO POWER TRN10511 DC/DC Converter
The TRN 1 Series offers 1 Watt high-performance DC/DC converters in a compact SIP package measuring 11.9 x 7.7 x 11.0 mm. Fully regulated outputs ensure stable voltage with input ranges from 4.5-13.2V, 9-18V, 18-36V, and 36-75V, making them versatile for various applications. With 1600 VDC I/O isolation, they operate efficiently from -40°C to +90°C without derating and include short circuit protection. Designed to meet IEC/EN 62368-1 and UL standards, these converters are ideal for space-constrained environments requiring reliable power solutions.
TRACO POWER TRN10511 DC/DC Converter Specifications:
- Package Dimensions: 11.9 x 7.7 x 11.0 mm
- Power: 1 Watt
- Input Voltage Range: 4.5-13.2 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 9-18V
- Maximum Output Current: 300 mA (3.3V), 200 mA (5V), 90 mA (12V), 70 mA (15V), 45 mA (24V)
- Efficiency: up to 83%
- Isolation Voltage: 1600 VDC
- Operating Temperature Range: -40°C to +90°C
- Surge Voltage (1s): 15V to 100V max depending on model
- Ripple and Noise: 50 mVp-p
- MTBF: 7,400,000 hours
- Safety Standards: IEC/EN 62368-1, UL 60950-1
- Potting Material: Silicone (UL 94V-0)
- Weight: 24 g
Buy the Traco Power Series TRN: 1 Watt DC/DC Converter: TRN10511
Discover the compact and highly reliable Traco Power DC/DC Converter TRN10511, offering 1 Watt power in a small SIP package. It supports wide input voltage ranges, 1600VDC I/O isolation, and efficient operation from -40°C to +90°C. Designed to meet IEC/EN 62368-1 and UL safety standards, it includes short circuit protection and a MTBF of over 7 million hours. Perfect for demanding environments, this converter ensures stable power delivery in space-constrained electronic systems. Buy online today for rapid deployment and proven performance.
Buy Traco Power TRN10511 now and experience unmatched reliability and performance in compact power solutions for space-limited applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRN10511?
You can click on the BUY or RFQ button to purchase TRN10511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRN10511?
You can download the TRN10511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRN10511?
TRACO POWER
