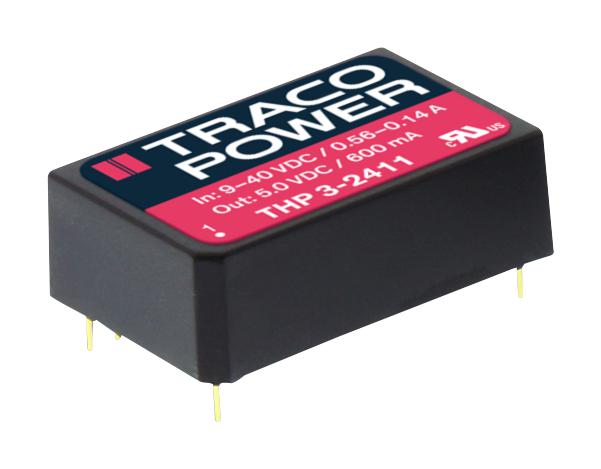

TRACO POWER THP37211 DC/DC Converter
The THP-3 series offers high-performance 3W DC/DC converters in a compact low profile DIL-24 package, ideal for transportation, medical, and instrumentation applications. These converters feature UL60950+1 and IEC/EN 60601-1 safety standards, with reinforced insulation and 3000 VACrms isolation. They operate efficiently between -40°C to 85°C, supporting input voltages from 18 VDC to 160 VDC. Equipped with continuous short circuit protection, high MTBF over a million hours, and RoHS compliance, they deliver reliable power in demanding environments with an extended temperature range, high efficiency (up to 83%), and excellent safety certifications.
TRACO POWER THP37211 DC/DC Converter Specifications:
- Input Voltage Range: 4.5-160 VDC with models at 9-40 VDC, 18-80 VDC, and 36-160 VDC
- Output Voltage Options: 5 VDC, 12 VDC, and 15 VDC, with currents up to 600 mA
- Efficiency: up to 83%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 3000 VACrms, withstand voltage up to 6000 Vpk
- Isolation Resistance: >1000 Mohm at 500VDC
- MTBF: >1 million hours
- Class A EMI compliance, meets EN55022
- Dimensions: Low profile DIL-24 package, weight 16.2 g
- Soldering Temperature: Max 265°C for 10 seconds
- Switching Frequency: Approximately 150 kHz
- Safety Standards: UL 60950-1, IEC/EN 60950-1, UL 60601-1, IEC/EN 60601-1
- Protection: Short circuit, overvoltage, reverse polarity
- Certifications: UL, IEC, CSA compliant
Buy the Buy TracoPower DC-DC Converter Part Number THP37211 Online
Purchase the high-performance TracoPower DC/DC Converter THP-3 series online today for dependable power solutions in medical, industrial, and transportation systems. Designed with reinforced insulation and UL/IEC safety standards, this compact, low profile converter assures reliable operation across a wide temperature range from -40°C to 85°C. Its high efficiency up to 83%, over a million hours MTBF, and excellent EMI compliance make it ideal for demanding applications. Get professional quality and fast delivery by ordering online now.
Order your TracoPower SeriesTHP37211 3W DC/DC Converter today and ensure your projects benefit from reliable, high-quality power supply performance.
Frequently Asked Questions
Where can I buy TRACO POWER THP37211?
You can click on the BUY or RFQ button to purchase THP37211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THP37211?
You can download the THP37211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THP37211?
TRACO POWER
