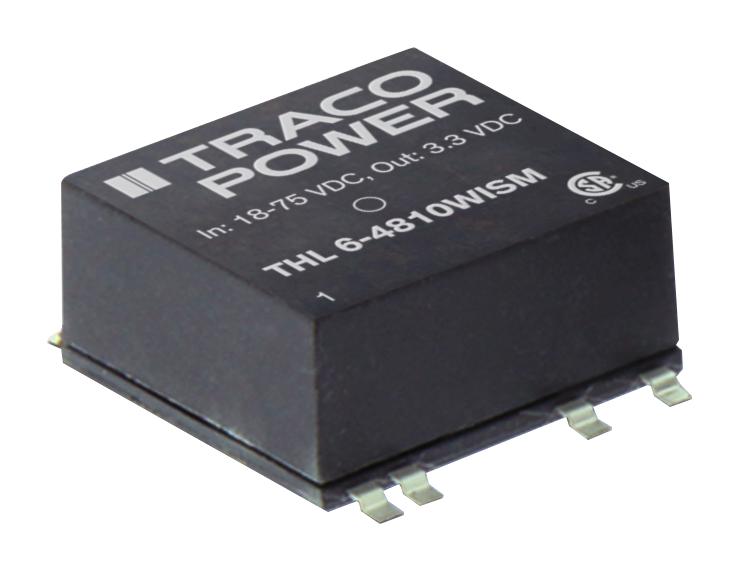

TRACO POWER THL64812WISM DC/DC Converter
The THL 6WISM series offers compact 6-watt DC/DC converters suitable for industrial electronics, telecom, and instrumentation applications. Featuring a 4:1 wide input voltage range from 9 VDC to 36 VDC or 18 VDC to 75 VDC, these SMD-package power modules are 31% smaller than traditional DIP-24 versions. They include fully regulated outputs, remote On/Off, short circuit protection, and an internal input filter meeting EN 55022 Class A standards. Operating temperature ranges from -40°C to +75°C, with high efficiency up to 83%, making them ideal for space-constrained, reliable power solutions in harsh environments.
TRACO POWER THL64812WISM DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC depending on model
- Output Voltage: 12 VDC
- Output Current Max: 500 mA
- Efficiency: Up to 83%
- Operating Temperature: -40°C to +75°C
- Isolation Voltage (Input/Output): 1500 VDC
- Regulation: ±2% max voltage set accuracy, 1.0% input regulation, 1.2% load regulation
- Ripple and Noise: 100 mVp-p max.
- Switching Frequency: 330 kHz
- Dimensions: Compact SMD package, 31% smaller than DIP-24, specific dimensions detailed in datasheet
- Isolation Resistance: >1 GOhm at 500 VDC
- Humidity: 95% non-condensing
- MTBF: >350,000 hours
- Certifications: IEC 60950-1, UL 60950-1
- Compliance: RoHS, REACH
- Environmental: Operating altitude up to 51000 m, moisture sensitive level 2a
Buy the TracoPower THL64812WISM – Reliable 12V DC/DC Power Converter for Industrial Applications
Order the TracoPower THL64812WISM DC/DC converter online today for a highly reliable, compact power solution suitable for industrial, telecom, and instrumentation applications. Its 4:1 wide input voltage range, regulated 12 V output, and efficient operation make it perfect for space-constrained environments. Features include remote On/Off control, short circuit protection, and an internal filter meeting EN 55022 Class A standards. Designed for durability and high performance, this converter supports harsh conditions with operating temperatures up to +75°C and a high MTBF, ensuring long-term, stable power delivery.
Buy TracoPower THL64812WISM now and experience unmatched reliability and performance in space-efficient industrial power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER THL64812WISM?
You can click on the BUY or RFQ button to purchase THL64812WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL64812WISM?
You can download the THL64812WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL64812WISM?
TRACO POWER
