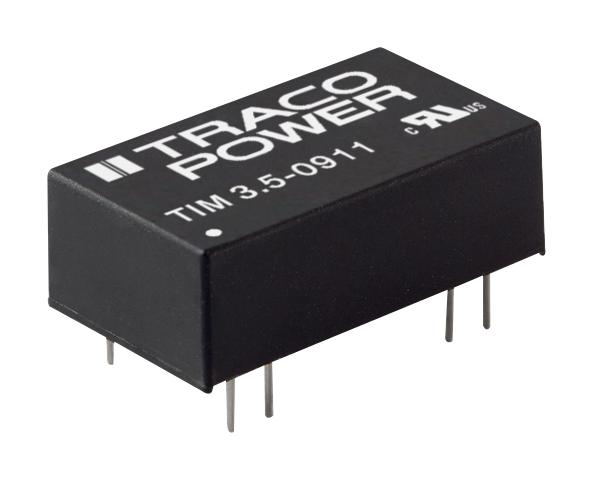

TRACO POWER TIM352411 Medical Power Converter
This compact 3.5 Watt DC/DC converter is designed for medical applications, providing reinforced isolation of 5000 VACrms, low leakage current below 2 pA, and an extended operating temperature from -40°C to 90°C. Certified under IEC/EN/ES 60601-1 3rd edition for 2XMOPP and suitable for operation up to 5000 meters altitude, it ensures safety, reliability, and EMC compliance according to IEC 60601-1-2 standards. Ideal for patient-connected electrical equipment, it features low noise, high efficiency, and a robust, non-conductive silicone potting for durability.
TRACO POWER TIM352411 Medical Power Converter Specifications:
- Power: 3.5 Watt
- Isolation Voltage: 5000 VAC (reinforced insulation)
- Input Voltage Range: 5.0 VDC to 42 VDC (various models)
- Output Voltage: 4.5 VDC to 42 VDC (depending on model)
- Maximum Output Current: 700 mA to 234 mA (varies by model)
- Efficiency: Up to 83%
- Operating Temperature: -40°C to +90°C (derating above 75°C at 3.3%/K)
- Leakage Current: < 2 pA at 240 VAC
- Isolation Capacitance: 20 pF max.
- Dimensions: Compact DIP-16 package, specific mm measurements available in datasheet
- Certification: IEC/EN/ES 60601-1 3rd edition, EN 61000-4-2 to 4-8 (EMC standards)
- Working Voltage: 250 VAC, 2 x MOPP
- Altitude Specification: Up to 5000 m
- Soldering Temperature: Max 260°C for 10 seconds
- Casing Material: Non-conductive black plastic, potting with silicone (UL94 V-0)
Buy the Traco Power TIM352411 – Reliable Medical DC/DC Converter for Industrial Applications
Enhance your healthcare devices with the Traco Power Medical Power Converter. This 3.5W unit features reinforced 5000 VAC isolation, low leakage current, and wide temperature range from -40°C to 90°C. Certified for medical safety standards, it offers high efficiency, low noise, and durable silicone potting. Perfect for patient-connected equipment, it ensures safety, reliability, and electromagnetic compatibility. Buy online today to upgrade your medical systems with top-quality power solutions that meet stringent industry standards effortlessly.
Buy Traco Power TIM352411 now and experience unmatched reliability and performance for medical and industrial equipment.
