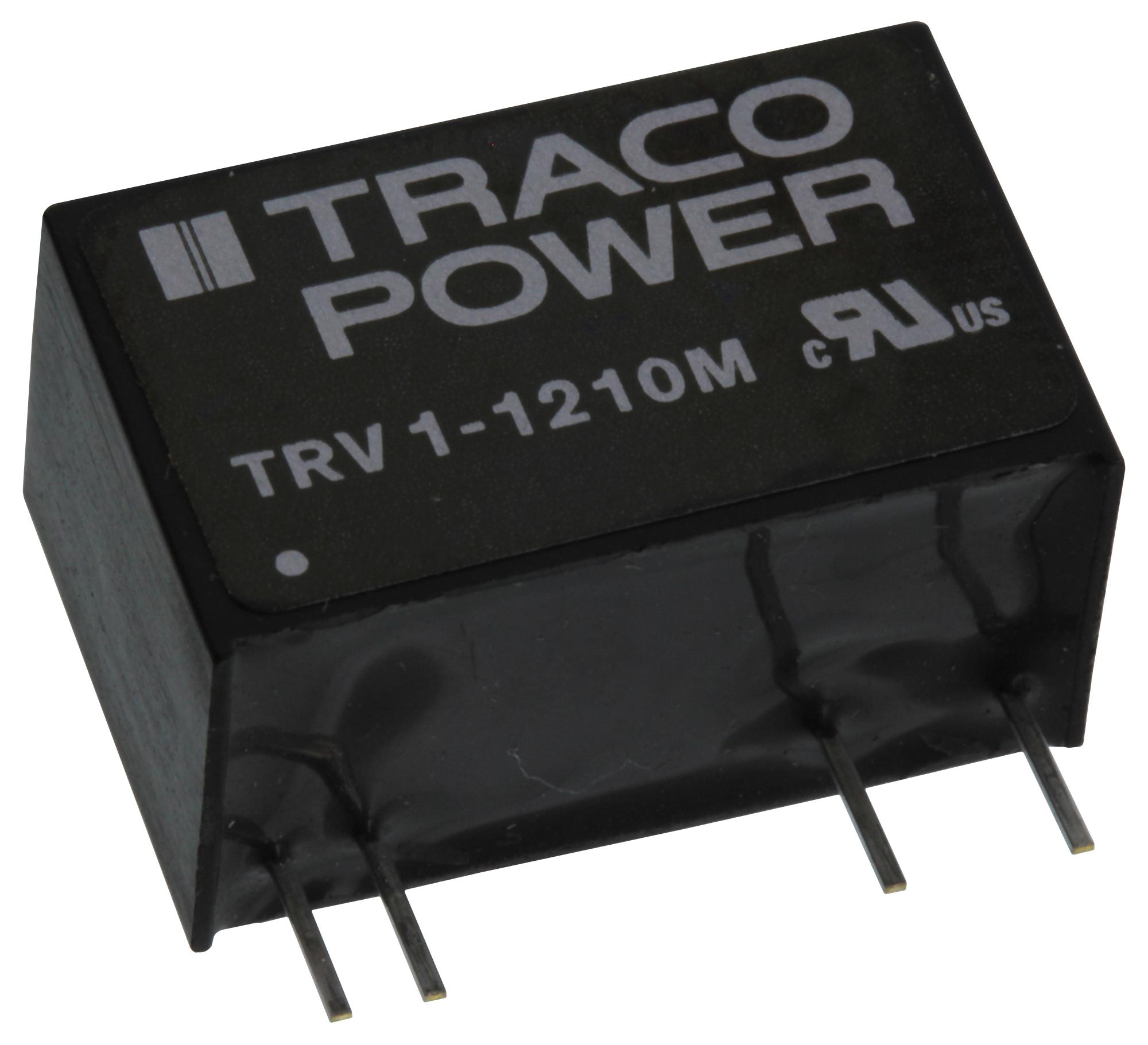

TRACO POWER TRV11210M Medical Power Module
The TRV 1M series is a compact 1 Watt DC/DC converter designed for medical and industrial applications, featuring reinforced 5000 VAC isolation, low leakage current below 2 pA, and approval to IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1 standards. Operating efficiently from -40°C to +85°C without derating, it offers models with input voltages from 5 to 24 VDC, with semi-regulated outputs for stable voltage regulation. The series is equipped with short circuit protection, high efficiency up to 85%, and suitable for high-altitude and medical device applications.
TRACO POWER TRV11210M Medical Power Module Specifications:
- Input Voltage Range: 5, 12, 15, 24 VDC (±10%)
- Output Power: 1 Watt
- Isolation Voltage: 5000 VAC reinforced
- Operating Temperature: -40°C to +85°C without derating
- Efficiency: up to 85%
- Low Leakage Current: < 2 pA
- Short Circuit Protection: Continuous, automatic recovery
- Certification Standards: IEC/EN/ES 60601-1 3rd edition, IEC/EN/UL 62368-1
- Input Current: 5 V models 30 mA, 12 V models 30 mA, 15 V models 15 mA, 24 V models 10 mA
- Surge Voltage: 6 VDC for 5 V, 25 VDC for 12 and 15 V, 40 VDC for 24 V
- Temperature Range: -40°C to +85°C
- Altitude Operation: Up to 5000 m
- Safety & EMC Standards: EN 60601-1, IEC 60601-1, UL 62368-1, EN 65011, EN 65032
- Housing: Non-conductive plastic (UL94 V-0)
- Dimensions: 19.6 x 6.0 x 10.2 mm (approximate)
- Pin Material: Brass, Nickel and Tin plated, THD connection
- Leakage Current: 2 μA max.
- Isolation Resistance: 500 VDC min. 70,000 MΩ
Buy the Traco Power Series TRV11210M DC/DC Converter: 1 Watt Medical Grade Power Module
Purchase the Traco Power Series TRV11210M DC/DC converter online today and benefit from a compact, reliable power solution with reinforced 5000 VAC isolation, low leakage current, and wide operating temperature. Perfect for medical devices, industrial equipment, and safety-critical systems. Enjoy fast shipping, secure checkout, and support from industry leaders to keep your projects operating with maximum safety and efficiency. Invest in a trusted power conversion solution that meets strict IEC, UL, and medical standards for peace of mind and compliance.
Order your Tracopower Series TRV11210M high-reliability 1W medical DC/DC converter today and ensure your medical or industrial project benefits from reinforced isolation and low leakage current.
