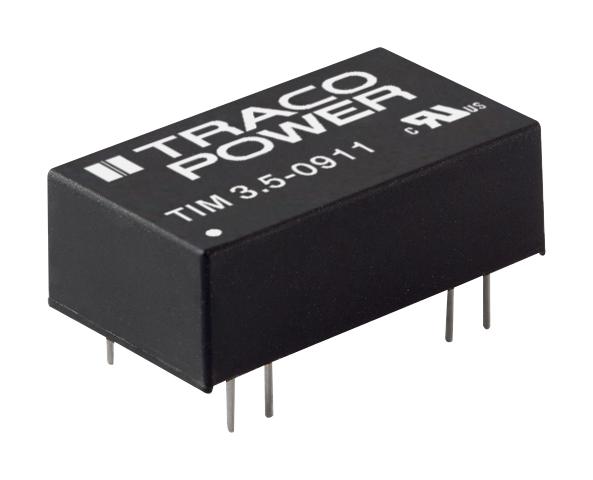

TRACO POWER TIM352415 Medical DC/DC Converter
The TIM 3.5 series offers compact 3.5 Watt DC/DC converters designed for medical applications, boasting reinforced isolation of 5000 VACrms, low leakage current under 2 pA, and wide operating temperature from -40°C to 90°C. Certified to IEC/EN/ES 60601-1, they ensure patient safety and electrical insulation. Suitable for high-altitude operation up to 5000 meters, these converters feature low noise, excellent efficiency up to 83%, and comply with EMC standards. Ideal for medical devices necessitating reliable power with minimal leakage and enhanced safety standards.
TRACO POWER TIM352415 Medical DC/DC Converter Specifications:
- Power: 3.5 Watt
- Input Voltage Range: 4.5 VDC to 42 VDC
- Output Voltage Options: 5 V, 9 V, 12 V, 15 V, 24 V, 36 V
- Maximum Output Current: 700 mA
- Efficiency: Up to 83%
- Isolation Voltage: 5000 VAC (reinforced insulation)
- Leakage Current: Less than 2 pA at 240 VAC
- Operating Temperature: -40°C to +90°C
- Temperature Coefficient: 0.02%/K
- Dimensions: Compact DIP-16 package
- Compliance: IEC/EN/ES 60601-1, EMC standards IEC 60601-1-2, EN55032
- Altitude Limit: 5000 meters
- Switching Frequency: 100 kHz min
- Safety Certification: ANSI/AAMI ES60601-1, IEC 60601-1 3rd edition
- Certifications: UL, EN, IEC standards
Buy the Traco Power Series TIM 3.5 Medical DC-DC Converter: TIM352415
Purchase the Traco Power Series TIM 3.5 medical DC/DC converter online today to benefit from its reinforced 5000 VAC isolation, low leakage current under 2 pA, high efficiency up to 83%, and wide operating temperature from -40°C to 90°C. Ideal for healthcare equipment requiring reliable power, excellent safety certifications, and compliance with industry standards. Secure your supply with a durable, compact, and certified power solution that ensures patient safety and device reliability for high-altitude and demanding medical environments.
Order your Traco Power Series TIM 3.5 medical DC-DC converter today and ensure your healthcare devices operate with reliable power and superior safety standards.
