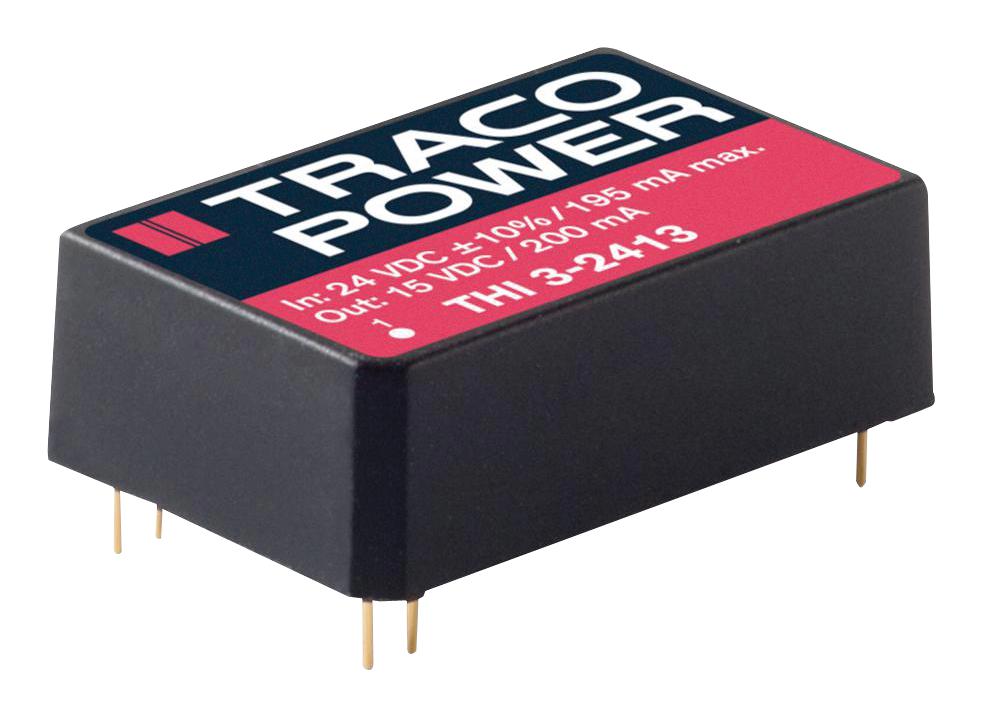

TRACO POWER THI30511 High Isolation DC/DC Converter
The THI 3 Series is a high isolation DC/DC converter designed for medical and industrial applications, offering reinforced insulation, single or dual outputs, and efficient performance. Encapsulated in a DIP-24 package, it features reinforced insulation with an I/O isolation voltage of 4000 VACrms, fully compliant with IEC/EN 60601-1, AAMI/ANSI ES 60601-1, and IEC 60950-1 standards. Operating within -40°C to +75°C, it includes short circuit protection, low leakage current, and low noise, making it ideal for precise medical instrumentation and robust industrial controls.
TRACO POWER THI30511 High Isolation DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC, 12 VDC, 24 VDC
- Output Voltage: 5 V, 12 V, 15 V, 24 V
- Output Current Max.: 600 mA for 5V models, 250 mA for 12V models, 200 mA for 15V and 24V models
- Efficiency: 60% - 64%
- Isolation Voltage: 4000 VACrms, rated for 300 Vrms working
- Operating Temperature Range: -40°C to +75°C
- Surge Voltage: 75 V max (5V), 15 V max (12V), 30 V max (24V)
- Conducted Noise: 50 mVpk-pk (20 MHz bandwidth)
- Ripple and Noise: 50 mVpk-pk
- Short Circuit Protection: Automatic recovery
- Isolation Capacitance Input/Output: 20 pF typ.
- Material: Plastic casing (UL 94-V0), copper alloy pins with gold plating
- Compliance: IEC/EN 60601-1, AAMI ES 60601-1, IEC 60950-1, RoHS, Reach
- Dimensions: Encapsulated in DIP-24 package, approximately 27 x 13 mm
- Weight: 12.4 grams
- Switching Frequency: 25-60 kHz
- Operating Humidity: Up to 95% relative humidity
Buy the Traco Power Series THI3 High Isolation Converter: THI 3-0511
Purchase the Traco Power Series THI3 high isolation DC/DC converter online today for medical and industrial applications. Featuring reinforced insulation, compact DIP-24 encapsulation, and a wide operating temperature range from -40°C to +75°C, this converter offers excellent efficiency up to 64%, low noise, and automatic short circuit recovery. Its robust design ensures compliance with IEC/EN 60601-1, IEC 60950-1, and other safety standards, making it perfect for critical medical instrumentation and precise industrial controls. Order now for fast delivery and reliable operation.
Order your Traco Power Series THI3 high isolation medical-grade converter today and ensure your healthcare equipment operates reliably and safely.
Frequently Asked Questions
Where can I buy TRACO POWER THI30511?
You can click on the BUY or RFQ button to purchase THI30511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THI30511?
You can download the THI30511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THI30511?
TRACO POWER
